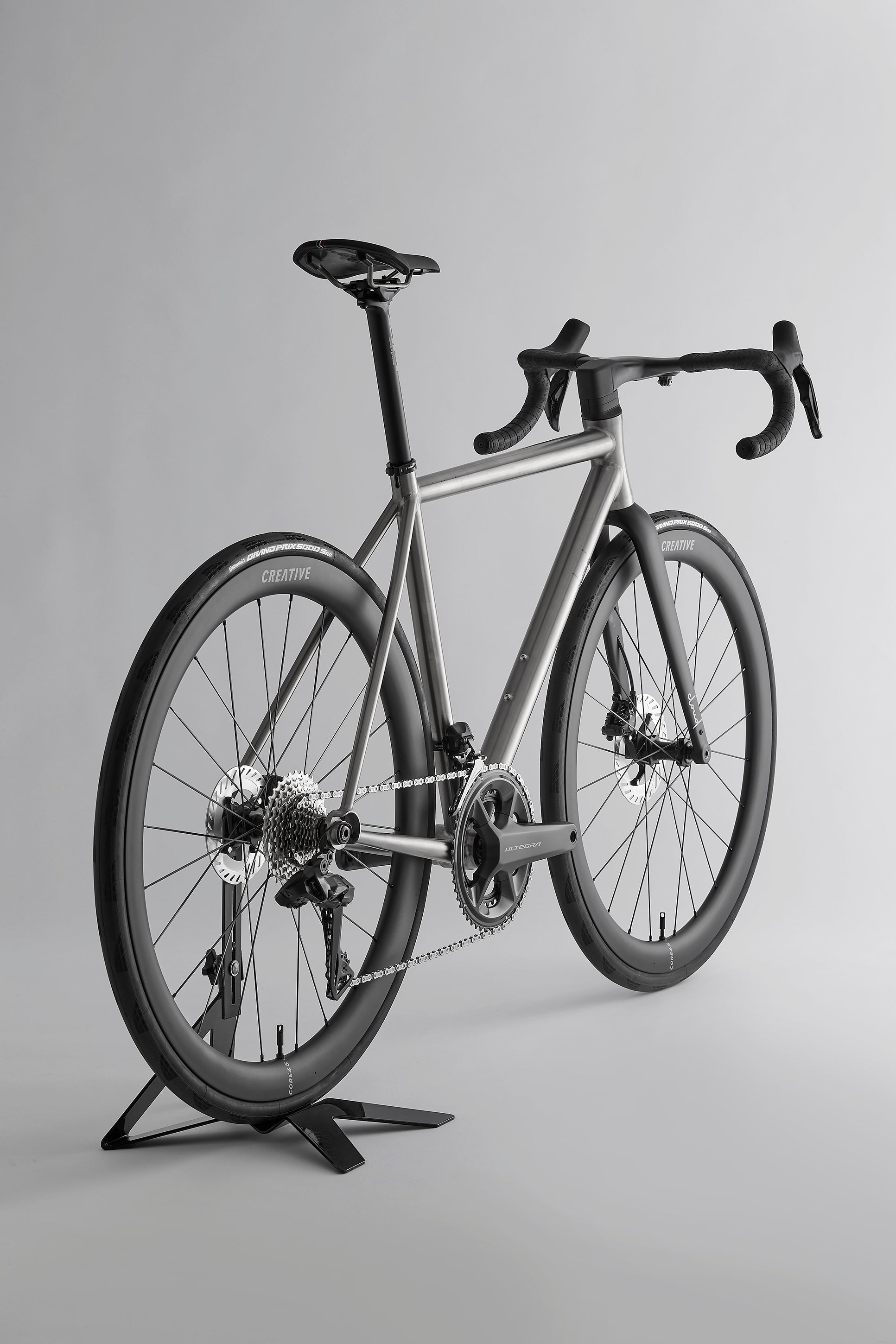

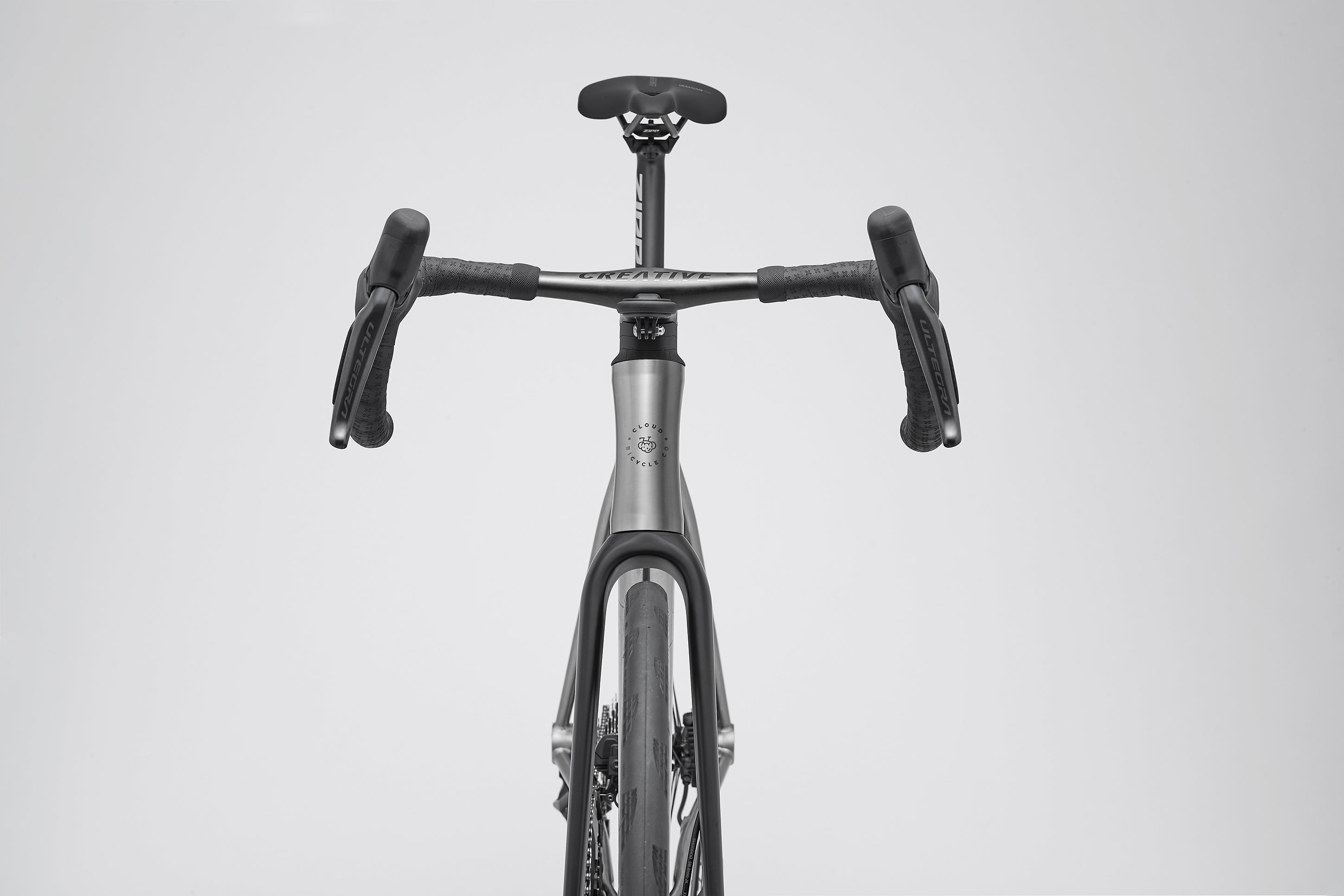

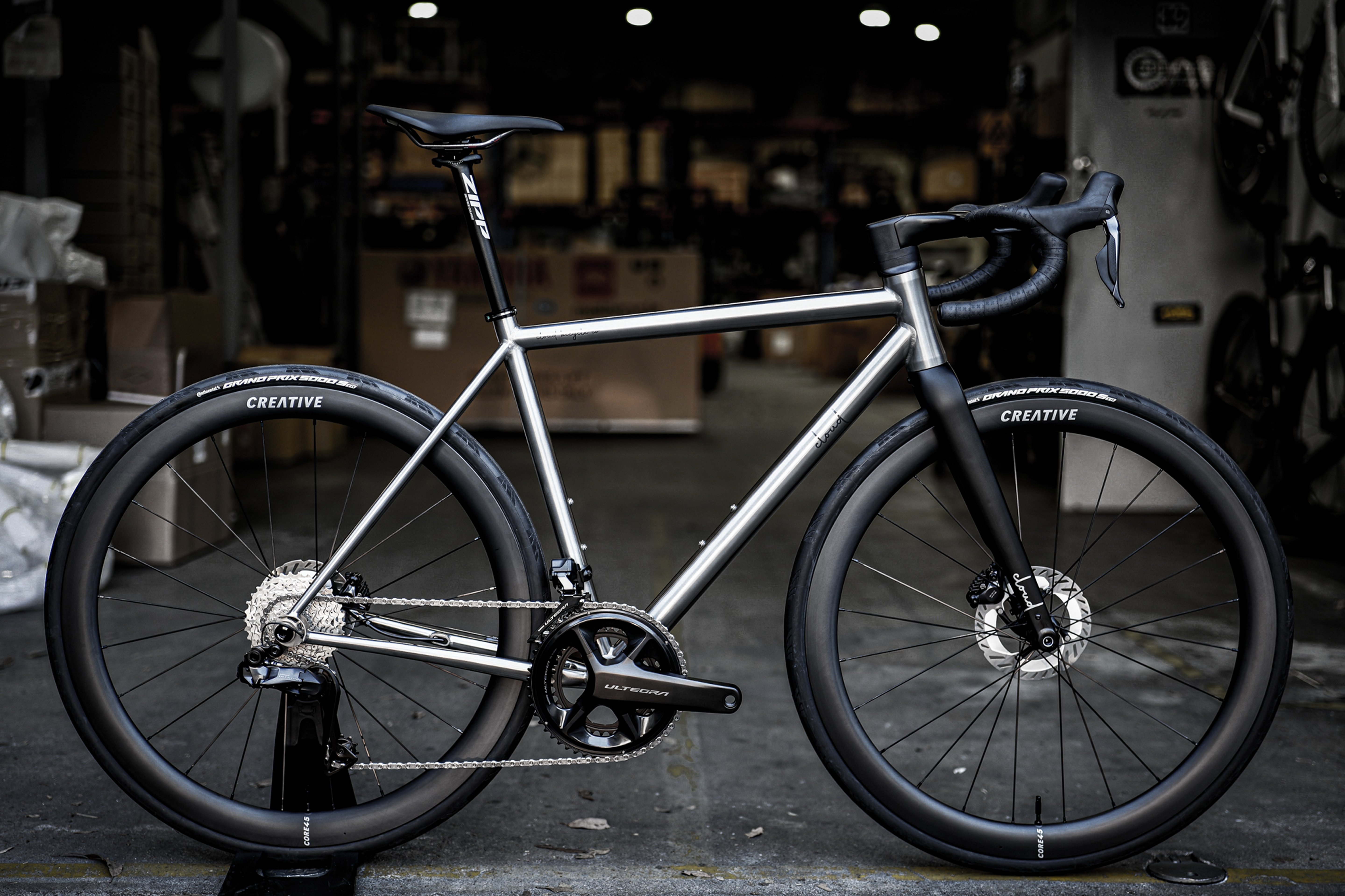

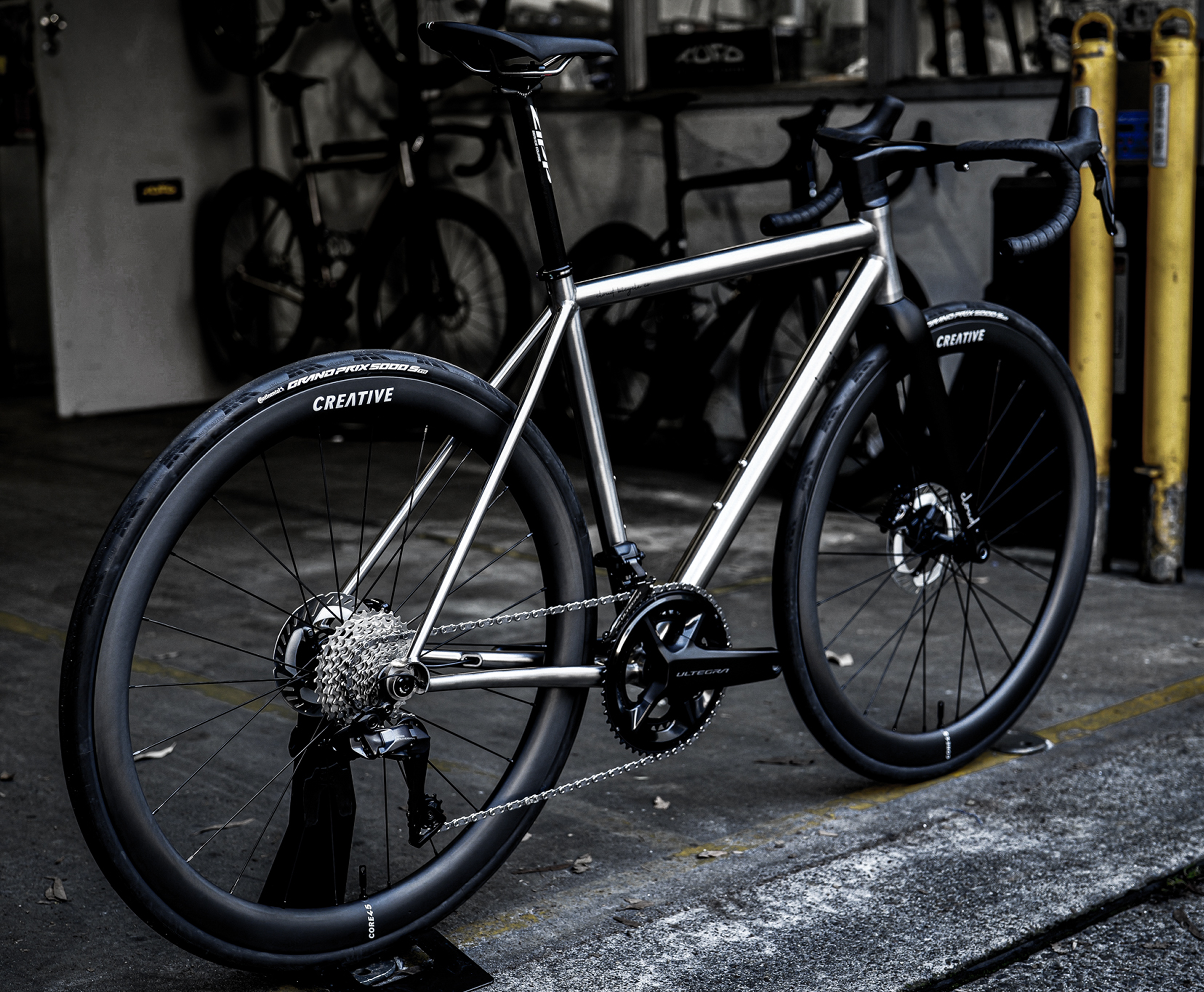

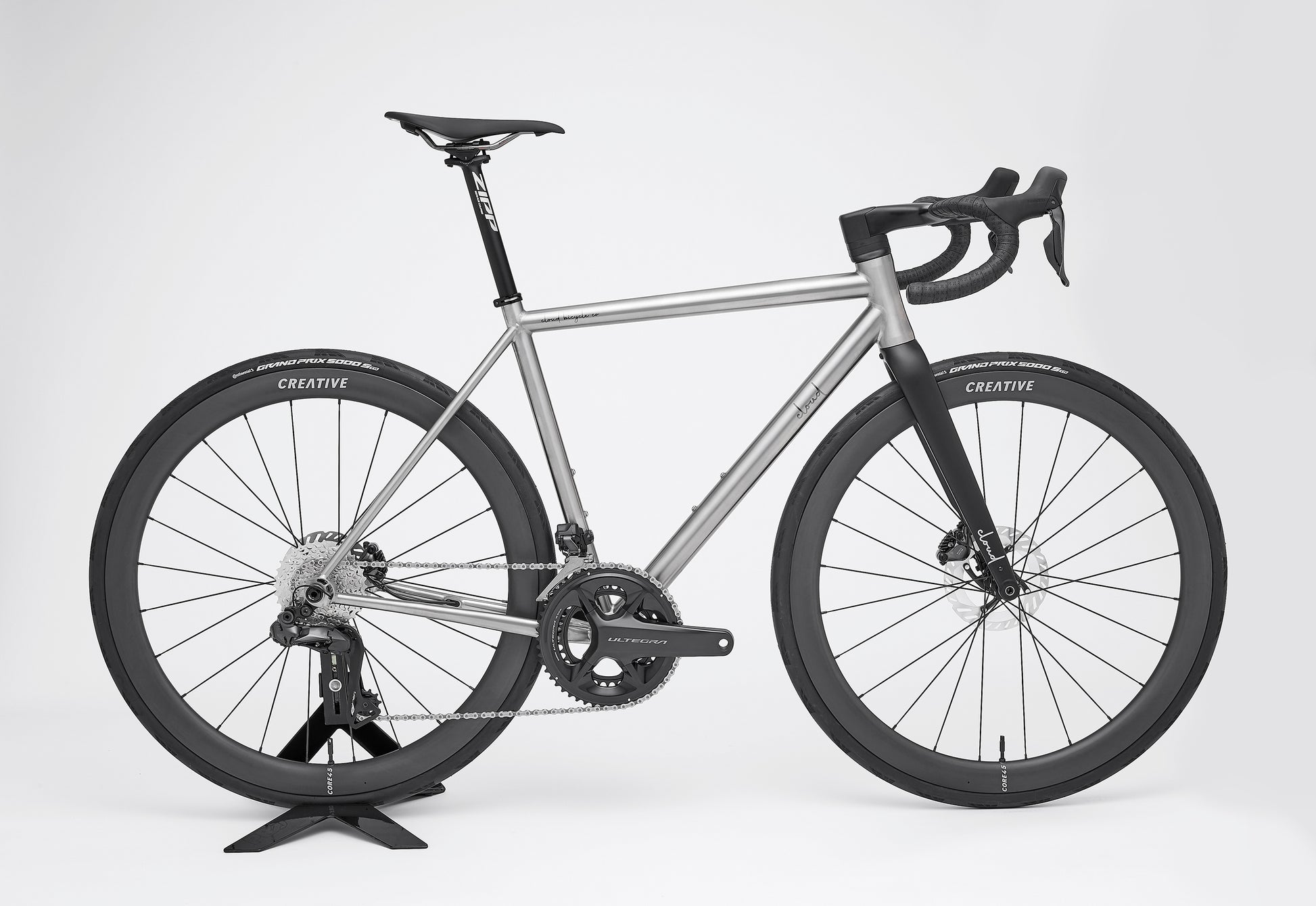

CLOUD All‑Road Titanium Bike Shimano Ultegra Di2
Weight - 8.2 kg

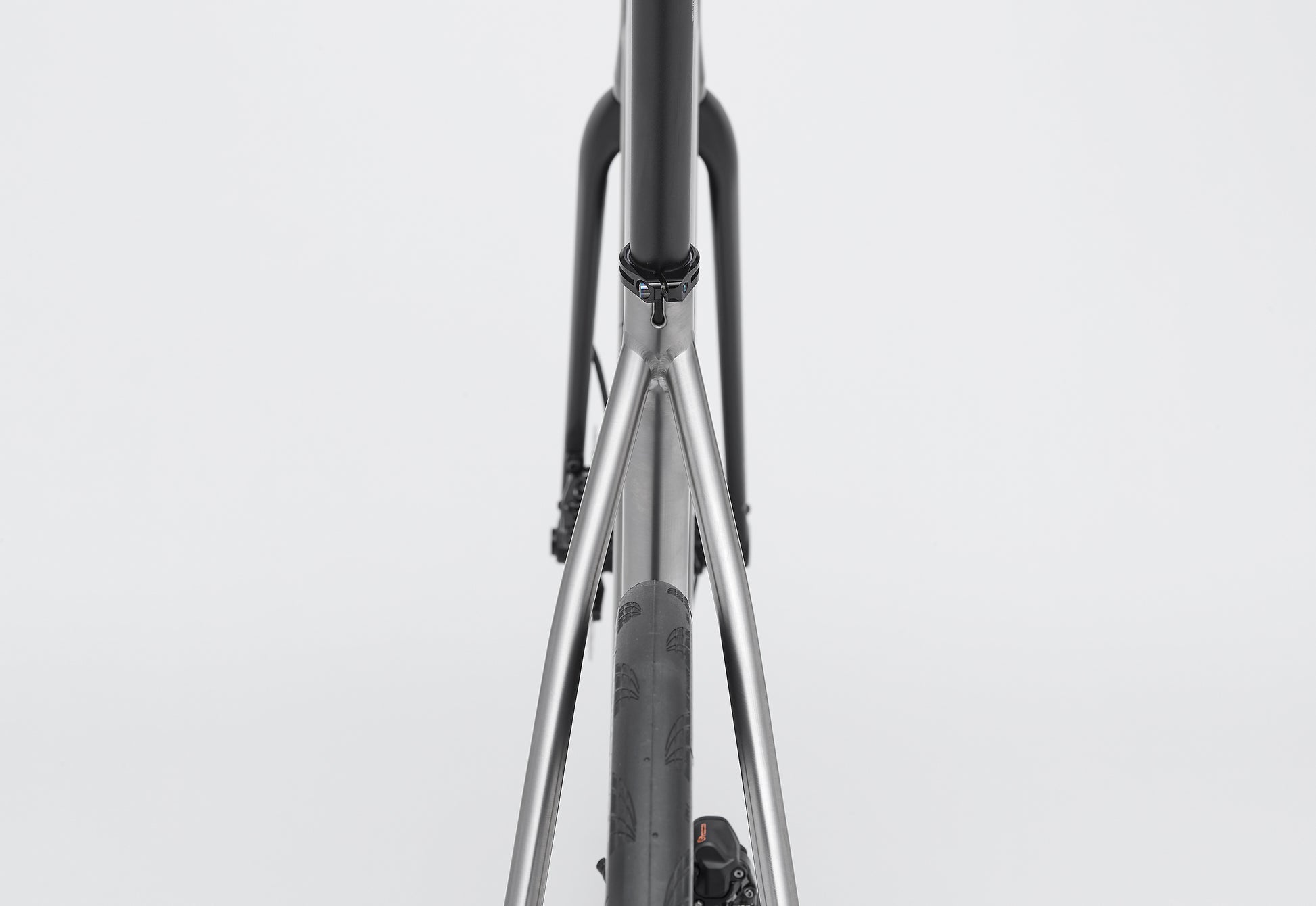

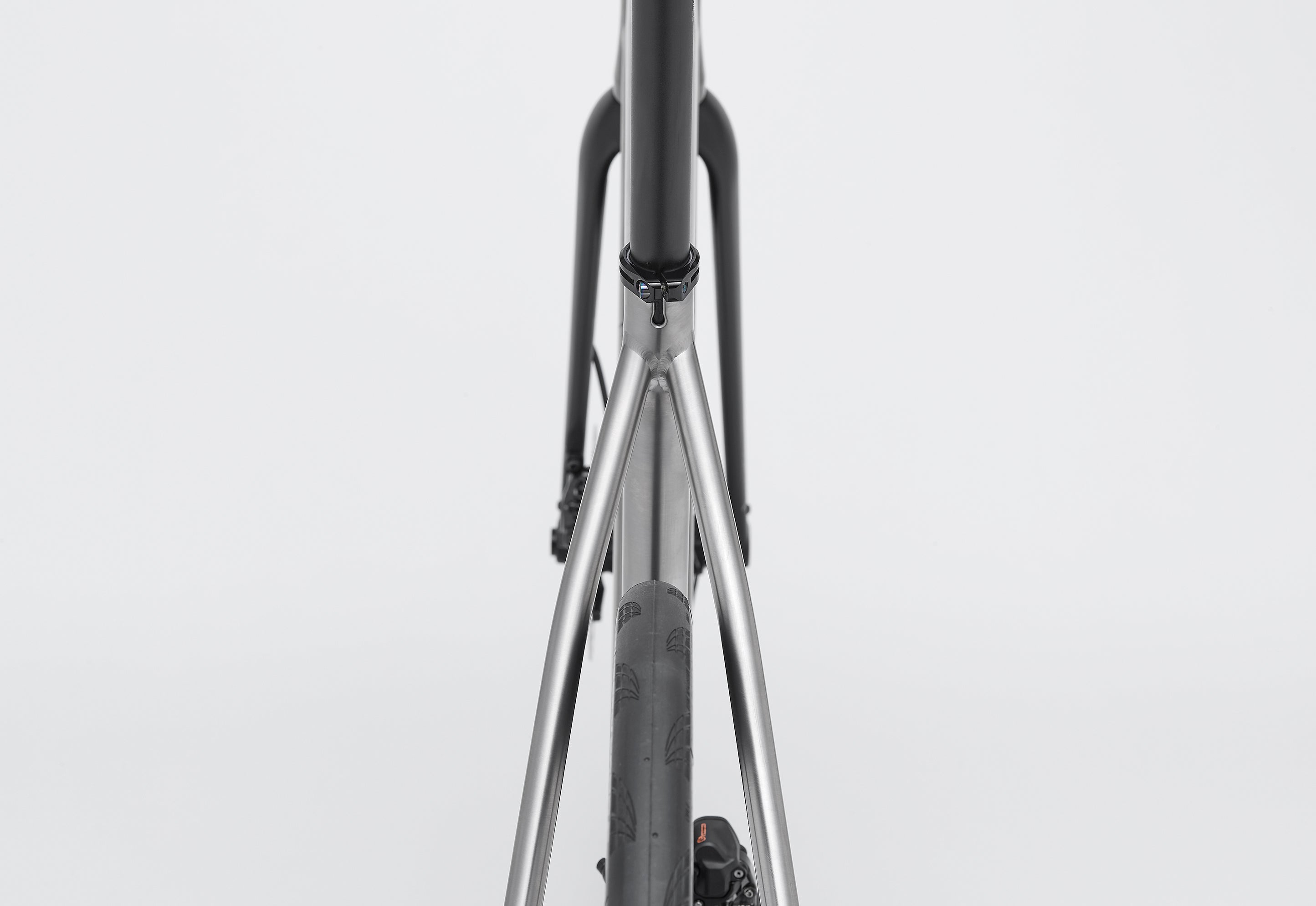

CLOUD All Road Titanium frameset

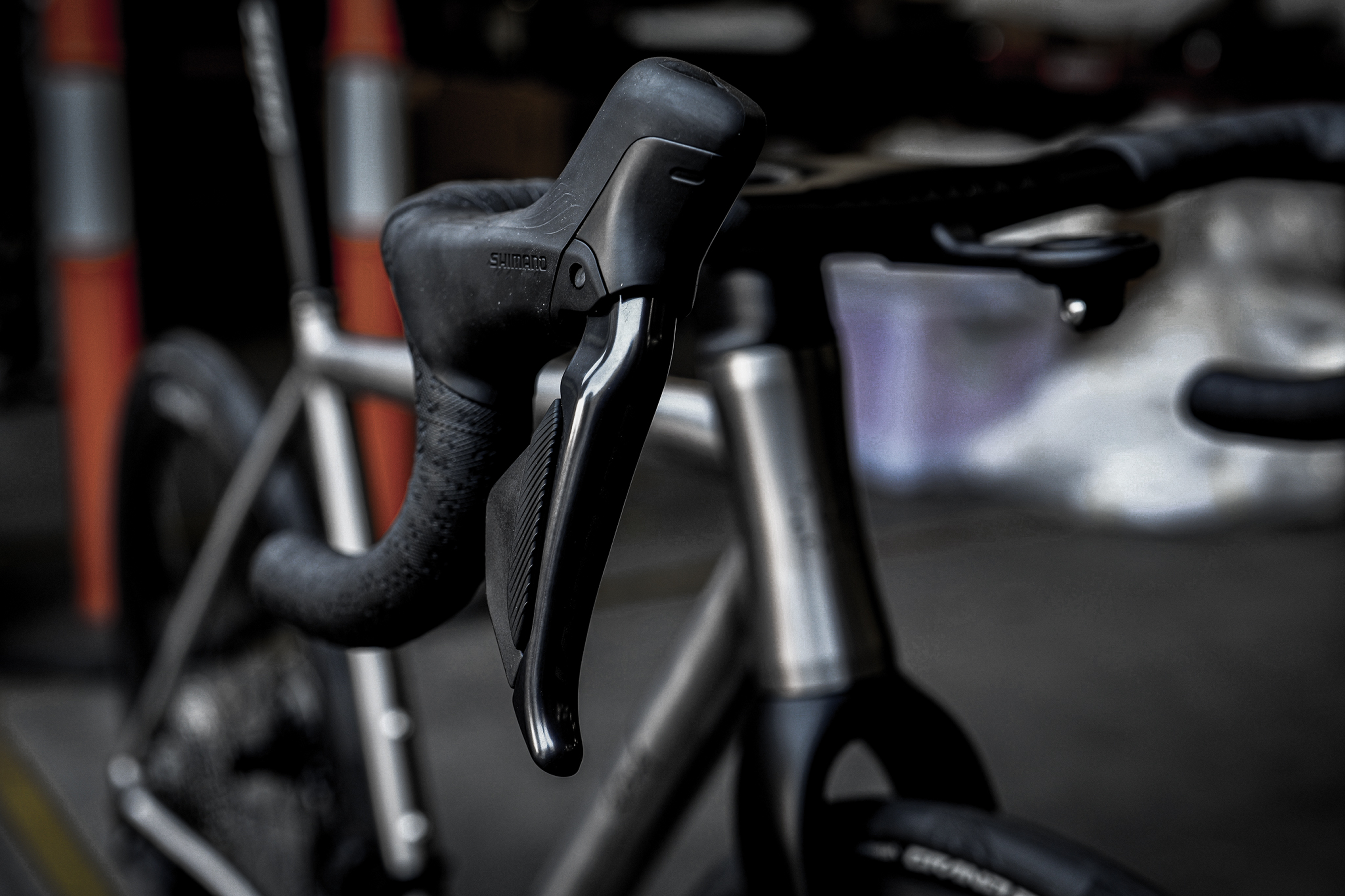

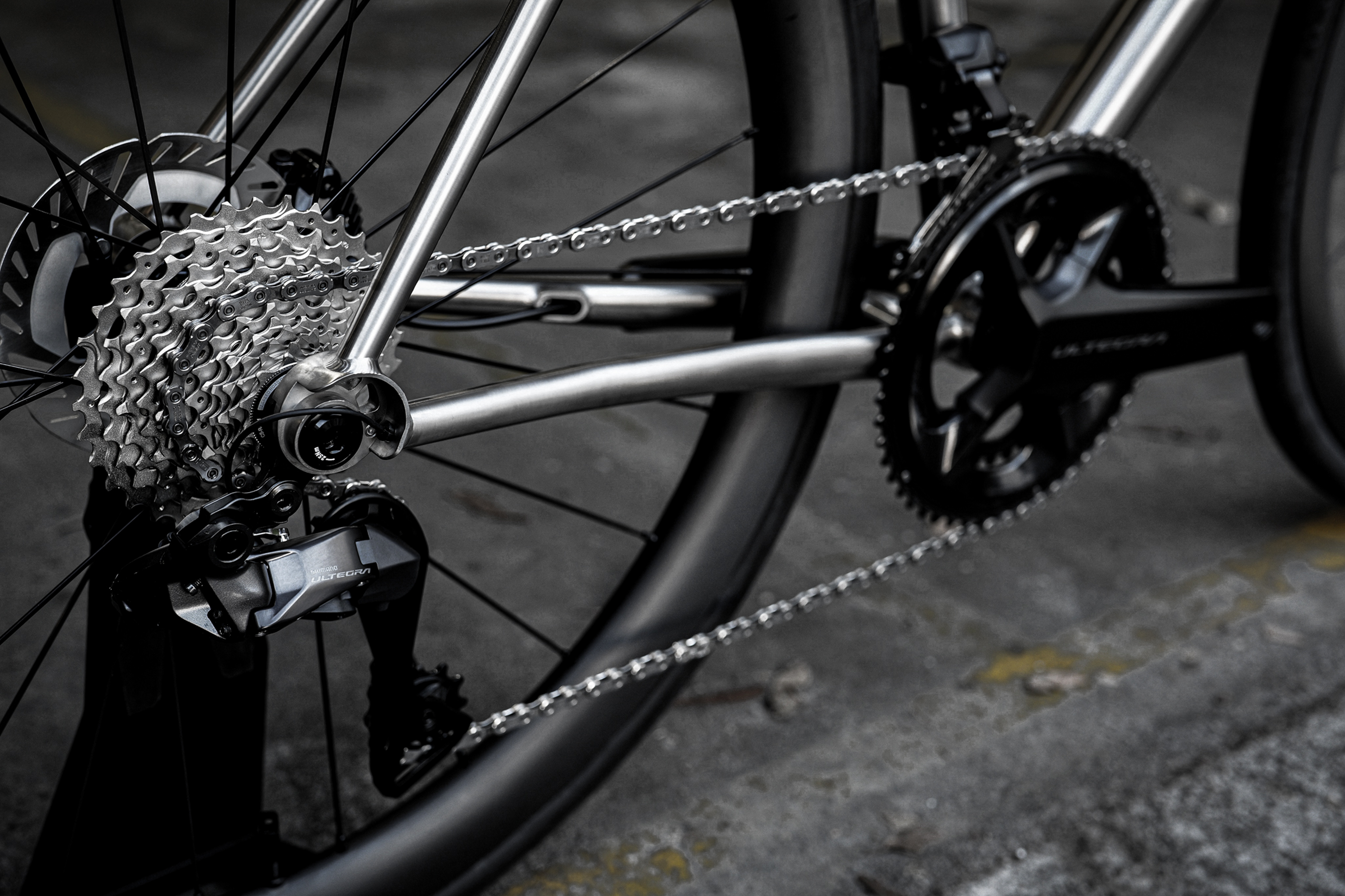

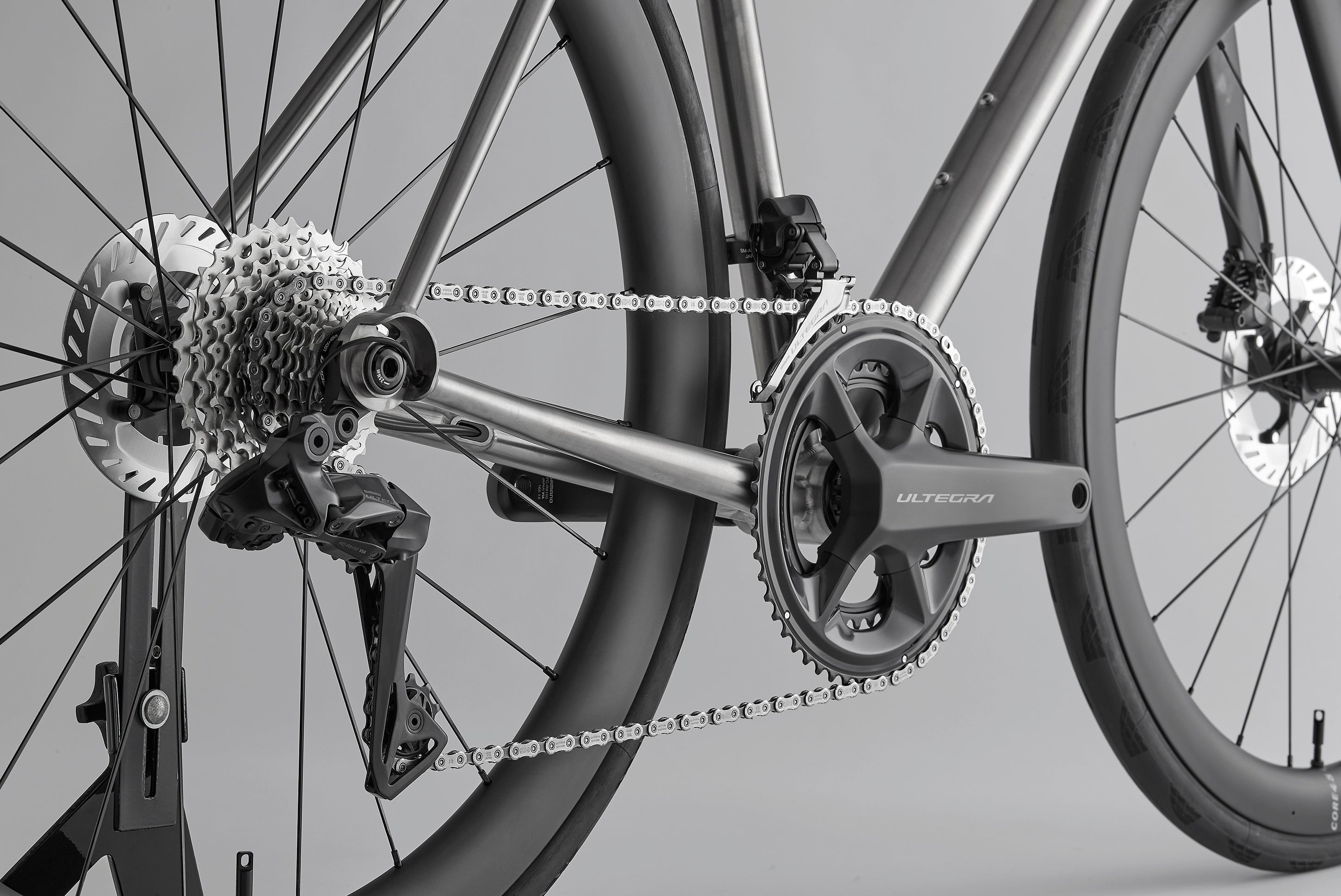

SHIMANO Ultegra Di2 R8100 12 speed groupset
SHIMANO 11-34 cassette

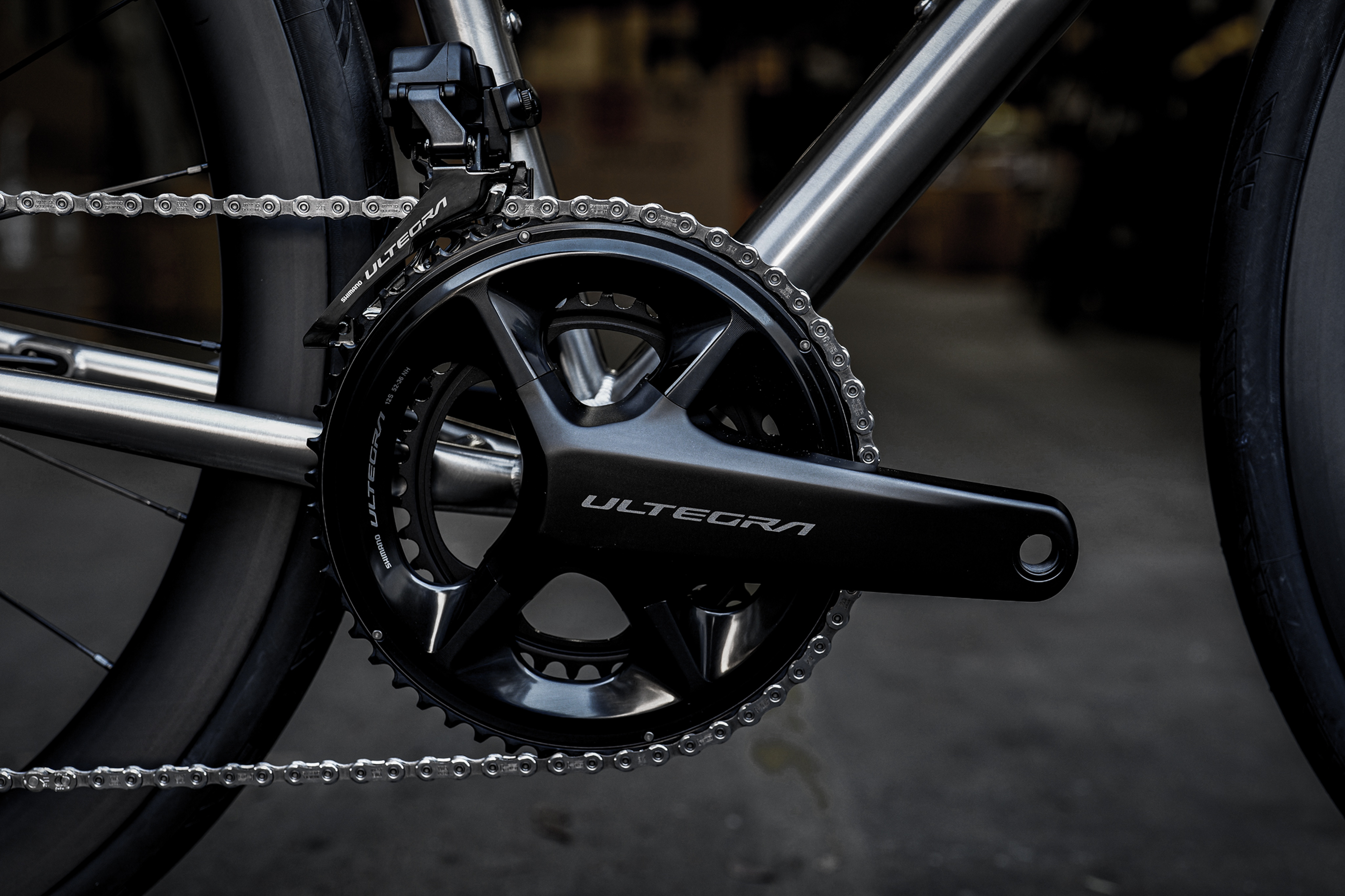

SHIMANO 52/36 chainrings

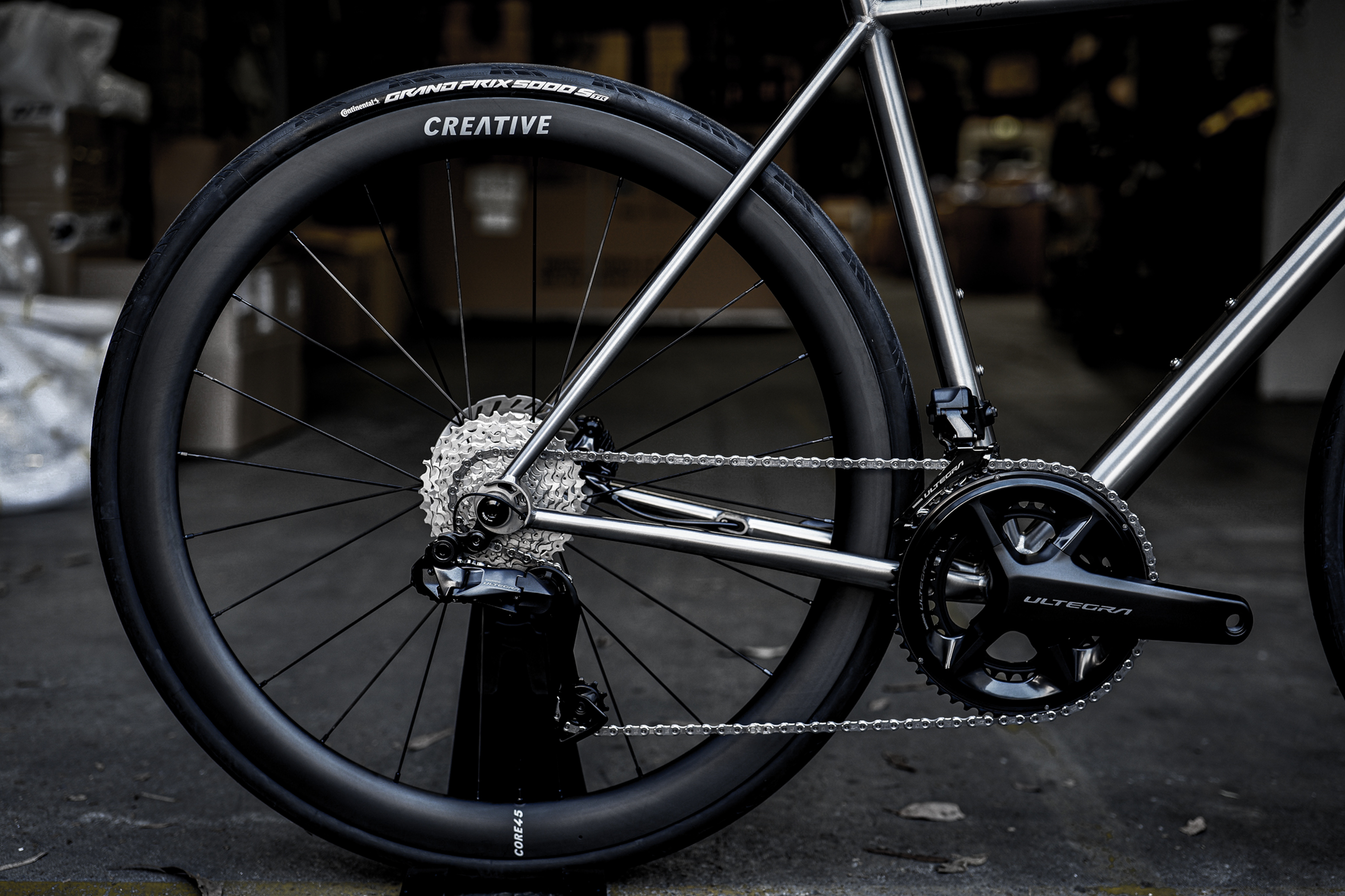

CREATIVE CARBON Core Wheelset

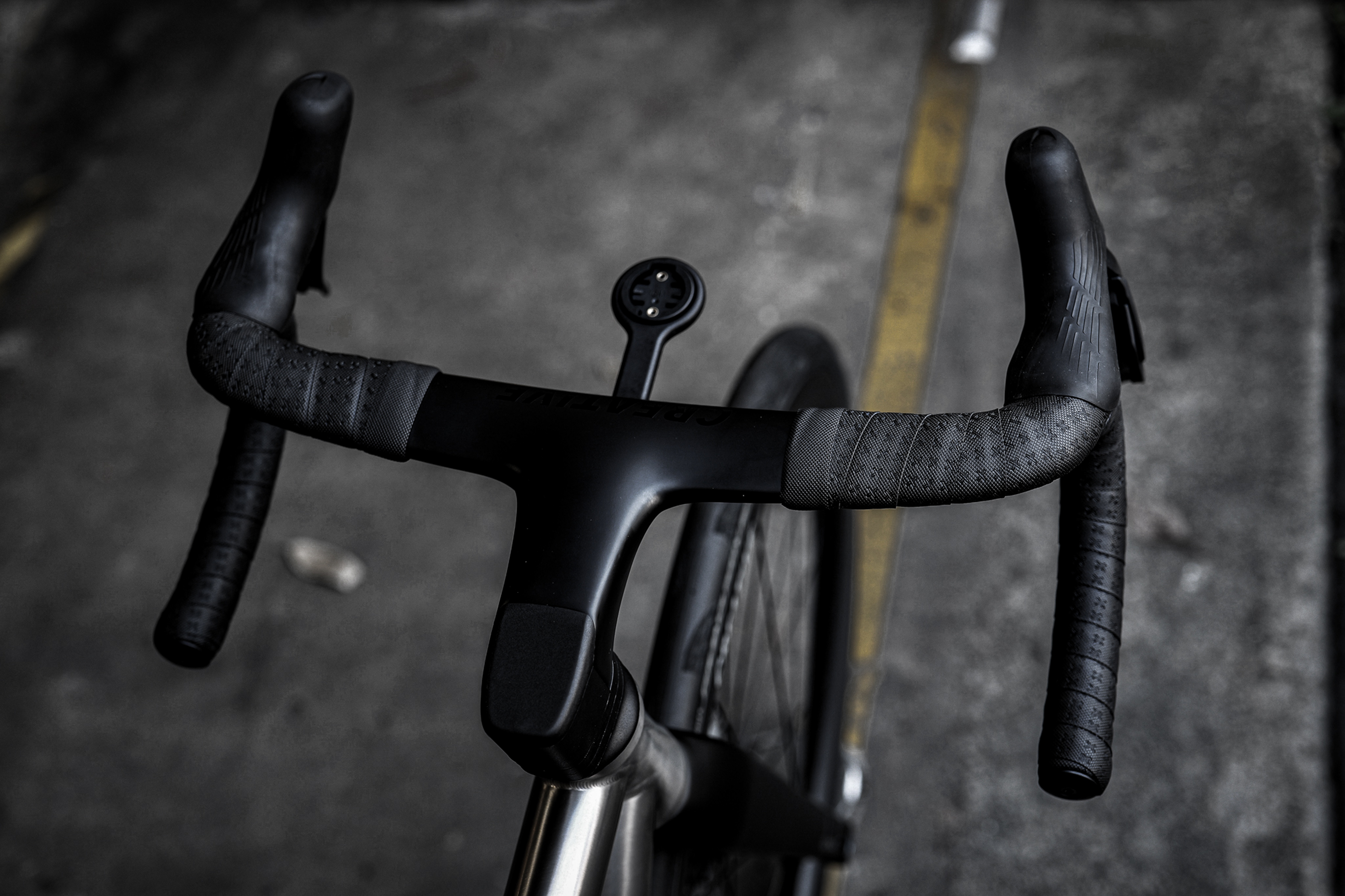

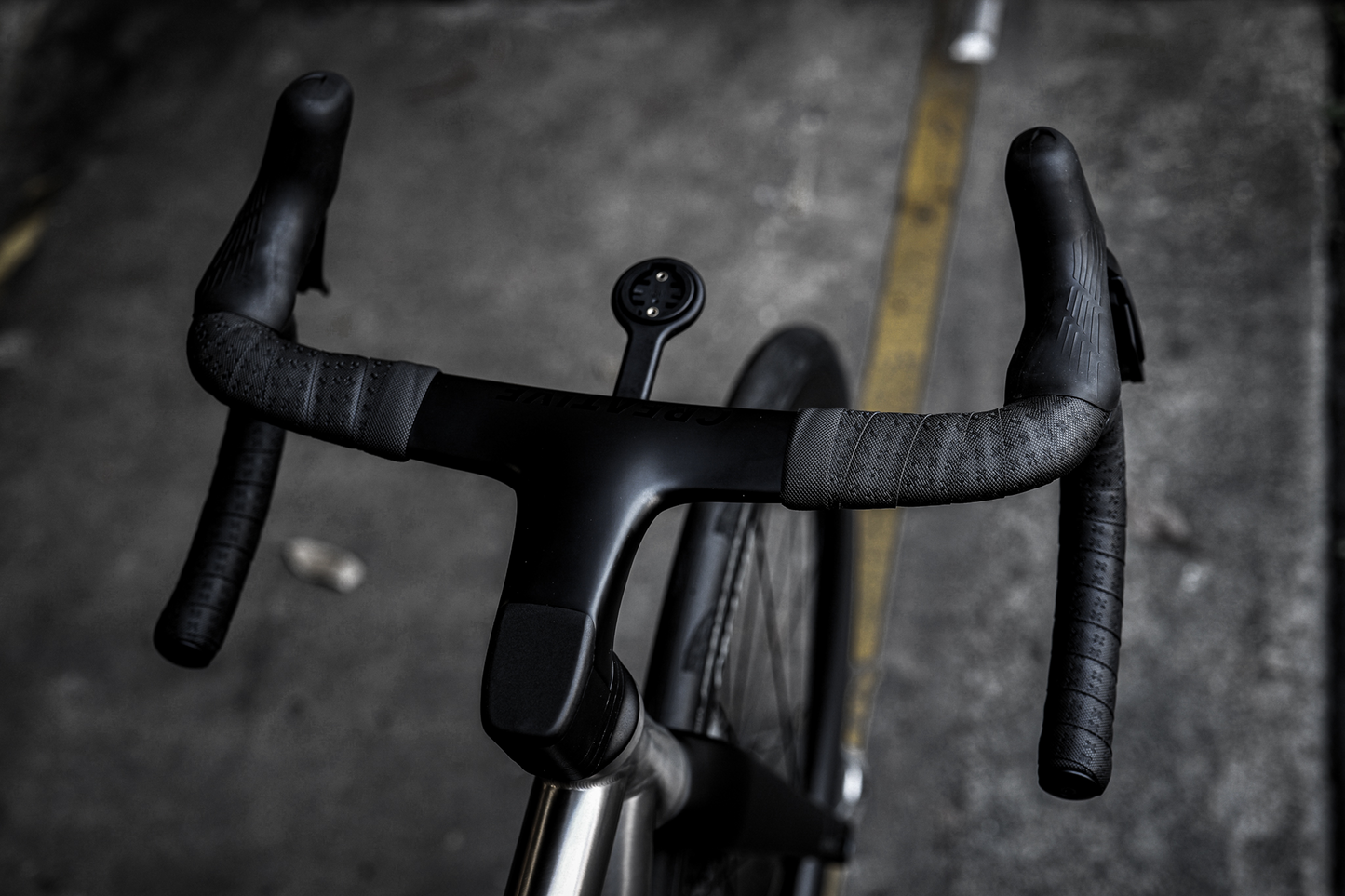

CREATIVE CARBON Integrated Aero Barstem
AITA Ceramic T47 Bottom Bracket
ZIPP Service Course SL Carbon Seatpost
SELLE REPENTE Quasar 2.0 Saddle
BURGH Domestique Bar Tape
CONTINENTAL GP5000 S TR 32mm Tubeless Tyres
CLOUD Titanium Bottle Cages
BUILD TIME: 5-10 BUSINESS DAYS
- Regular price
- $7,595.00
- Sale price
- $7,595.00
- Regular price
-
All-Road Geometry
| All-Road Geometry | |||||
| XS | S | M | L | XL | |
| Reach | 356 | 369 | 382 | 390 | 402 |
| Stack | 515 | 525 | 550 | 575 | 602 |
| Seat tube | 430 | 455 | 500 | 520 | 550 |
| Top tube Effective | 489 | 510 | 540 | 560 | 580 |
| Head tube | 102 | 111 | 135 | 161 | 188 |
| ST Angle | 75.5 | 75 | 74 | 73.5 | 73.5 |
| HTAngle | 70.5 | 71 | 71.5 | 71.5 | 72 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Chainstay | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 985 | 997 | 1014 | 1030 | 1046 |
| Fork offset | 51 | 51 | 51 | 51 | 51 |
| Fork crown - axle | 385 | 385 | 385 | 385 | 385 |
| Front - Center | 571 | 583 | 600 | 616 | 632 |
| Standover - 40mm | 701 | 719 | 754 | 774 | 802 |
| Trail w/ 40mm tyre | 69 | 66 | 62 | 62 | 59 |
| Trail w/ 32mm tyre | 66 | 63 | 60 | 60 | 57 |
Couldn't load pickup availability
We contact you post-purchase to confirm your bar width and stem length
Available sizes:
80 mm length ·
360 / 380 / 400 / 420 mm width
90 mm length ·
360 / 380 / 400 / 420 mm width
100 mm length ·
360 / 380 / 400 / 420 mm width
110 mm length ·
360 / 380 / 400 mm width
120 mm length ·
360 / 380 / 400 mm width
130 mm length ·
360 / 380 / 400 mm width
140 mm length ·
360 / 380 / 400 mm width
KEY FEATURES
-
44mm Tyre Clearance
Up to 44mm tyre clearance on ALL-ROAD bikes. Every Ultegra ALL-ROAD bike comes standard with Continental GP5000 S TR 32mm tyres.
-
Carbon Wheelset
Every bike comes standard with a carbon wheelset from Creative Carbon. All wheelsets are tubeless ready.
-
UDH
Universal Derailleur Hanger - Every ALL-ROAD frame is compatible with UDH.
-
TITANIUM
ALL-ROAD frame is made from grade 9 Titanium.
-
2X
ALL-ROAD frames are 1X or 2X compatible.
-
CERAMIC BOTTOM BRACKET
ALL-ROAD bikes come standard with AITA Ceramic bottom bracket.
