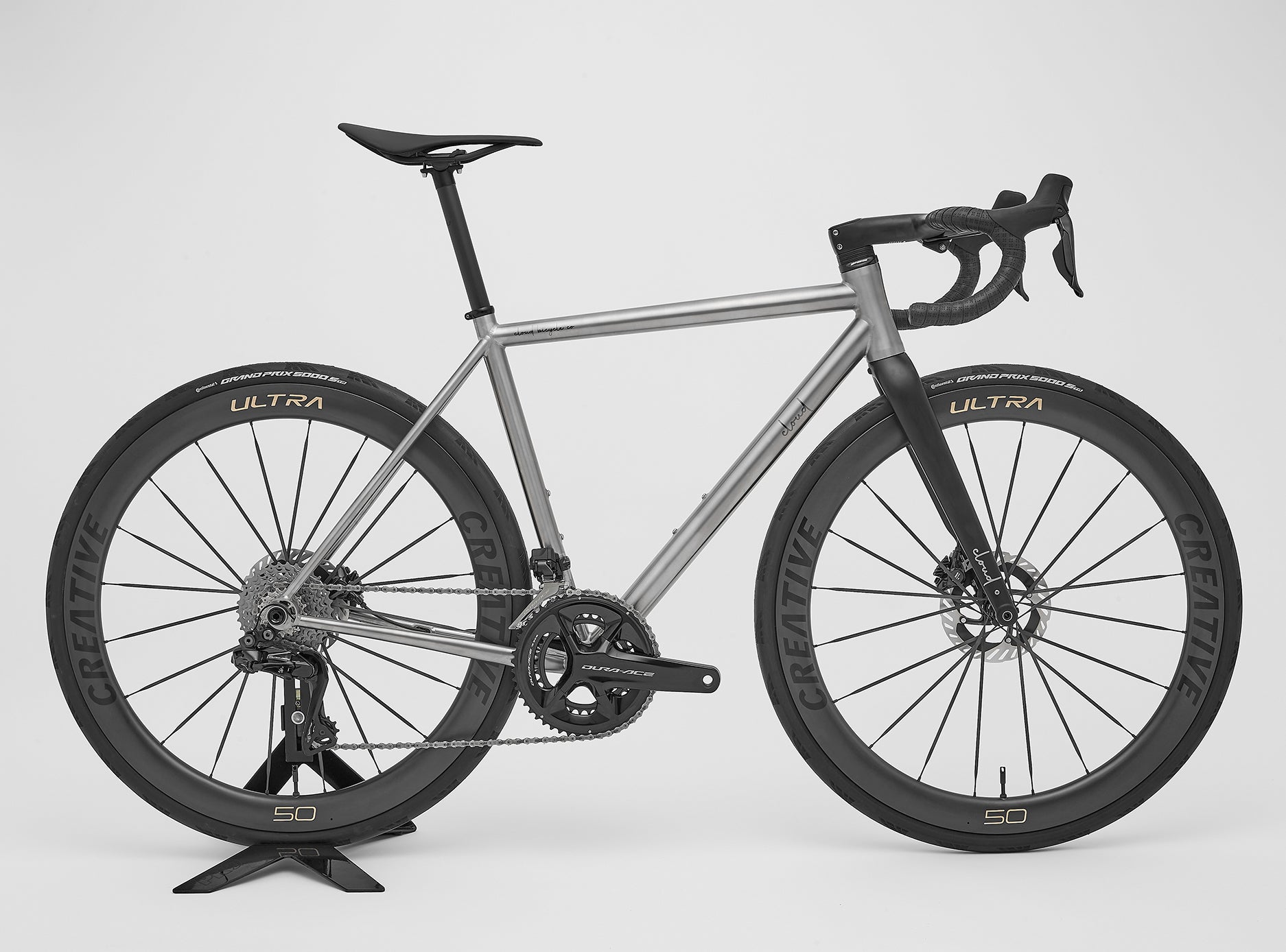

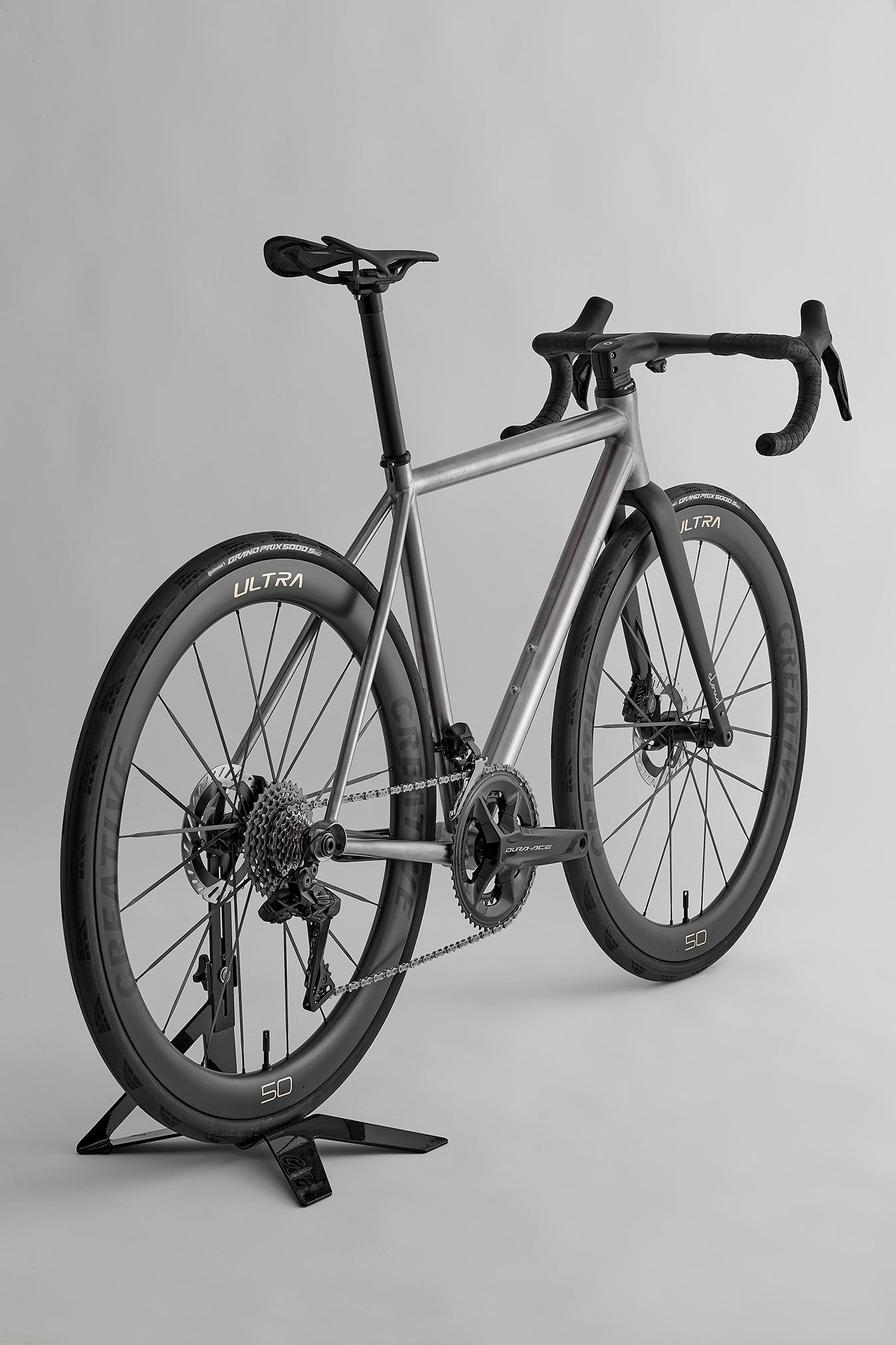

CLOUD All‑Road Titanium Bike Shimano Dura‑Ace Di2
Weight - 7.56 kg
CLOUD All Road Titanium frameset

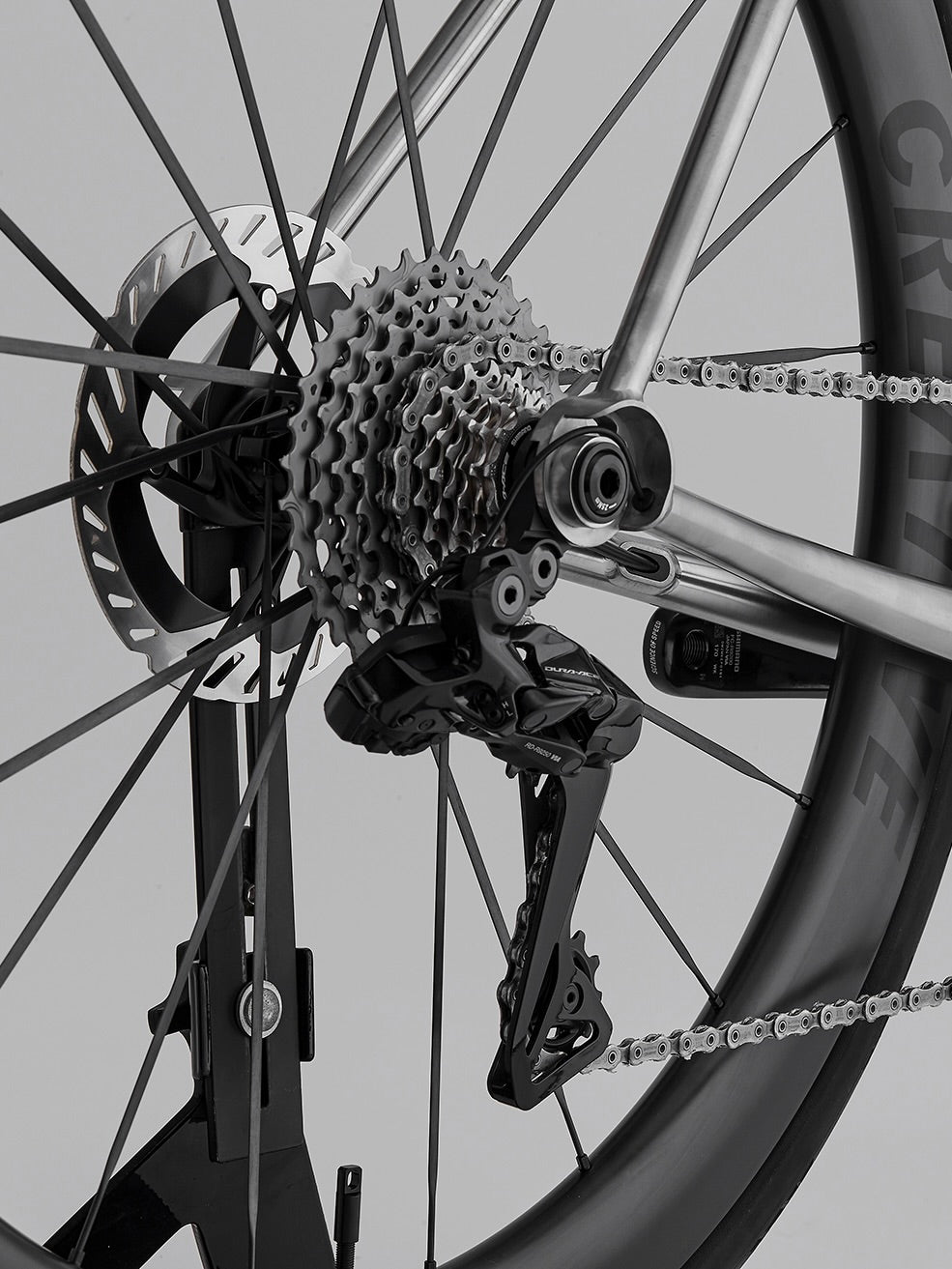

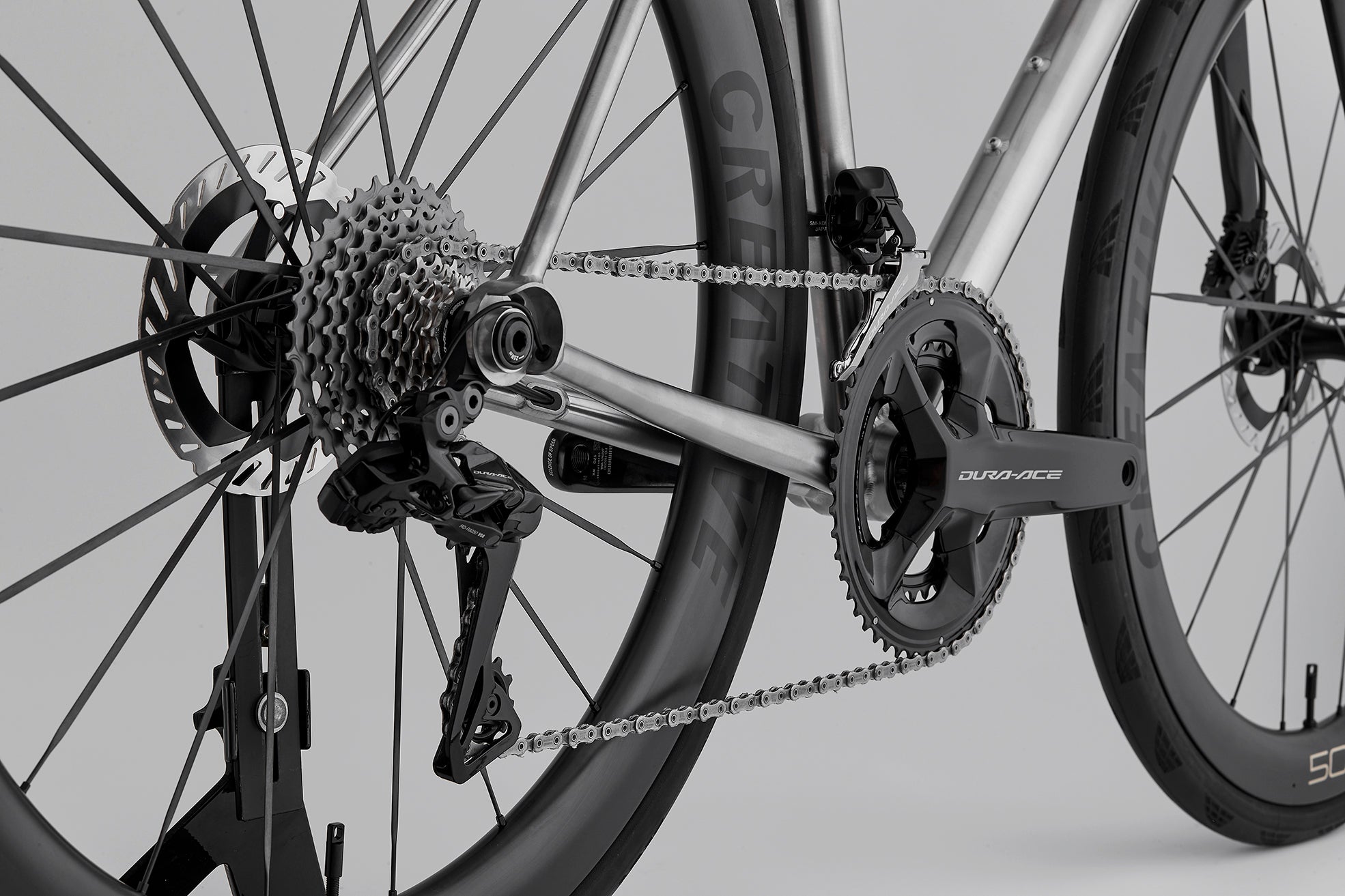

SHIMANO Dura Ace Di2 R9200 12 speed groupset
SHIMANO 11-34 cassette

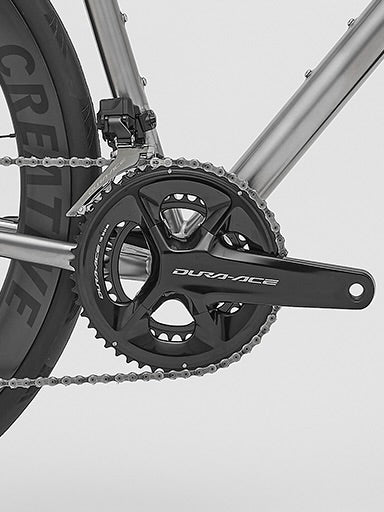

SHIMANO 50/34 chainrings
CREATIVE CARBON Ultra Wheelset
AITA Ceramic T47 Bottom Bracket
GELU Carbon Creation Seatpost
BERK Lupina Padded Saddle
BURGH Domestique Bar Tape
CONTINENTAL GP5000 S TR 32mm Tubeless Tyres
- Regular price
- $10,995.00
- Sale price
- $10,995.00
- Regular price
-
All-Road Geometry
| All-Road Geometry | |||||
| XS | S | M | L | XL | |
| Reach | 356 | 369 | 382 | 390 | 402 |
| Stack | 515 | 525 | 550 | 575 | 602 |
| Seat tube | 430 | 455 | 500 | 520 | 550 |
| Top tube Effective | 489 | 510 | 540 | 560 | 580 |
| Head tube | 102 | 111 | 135 | 161 | 188 |
| ST Angle | 75.5 | 75 | 74 | 73.5 | 73.5 |
| HTAngle | 70.5 | 71 | 71.5 | 71.5 | 72 |
| BB Drop | 73 | 73 | 73 | 73 | 73 |
| Chainstay | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 985 | 997 | 1014 | 1030 | 1046 |
| Fork offset | 51 | 51 | 51 | 51 | 51 |
| Fork crown - axle | 385 | 385 | 385 | 385 | 385 |
| Front - Center | 571 | 583 | 600 | 616 | 632 |
| Standover - 40mm | 701 | 719 | 754 | 774 | 802 |
| Trail w/ 40mm tyre | 69 | 66 | 62 | 62 | 59 |
| Trail w/ 32mm tyre | 66 | 63 | 60 | 60 | 57 |
Couldn't load pickup availability
KEY FEATURES
-
44mm Tyre Clearance
Up to 44mm tyre clearance on ALL-ROAD bikes. Every Dura Ace ALL-ROAD bike comes standard with Continental GP5000 S TR 32mm tyres.
-
Carbon Wheelset
Creative Carbon Ultra 50 - 24mm/30mm wide, 50mm deep hooked rims. Ceramic spokes and bearings.
-
UDH
Universal Derailleur Hanger - Every ALL-ROAD frame is compatible with UDH.
-
TITANIUM
ALL-ROAD frame is made from grade 9 Titanium.
-
2X
ALL-ROAD frames are 1X or 2X compatible.
-
CERAMIC BOTTOM BRACKET
ALL-ROAD bikes comes standard with AITA Ceramic bottom bracket.
