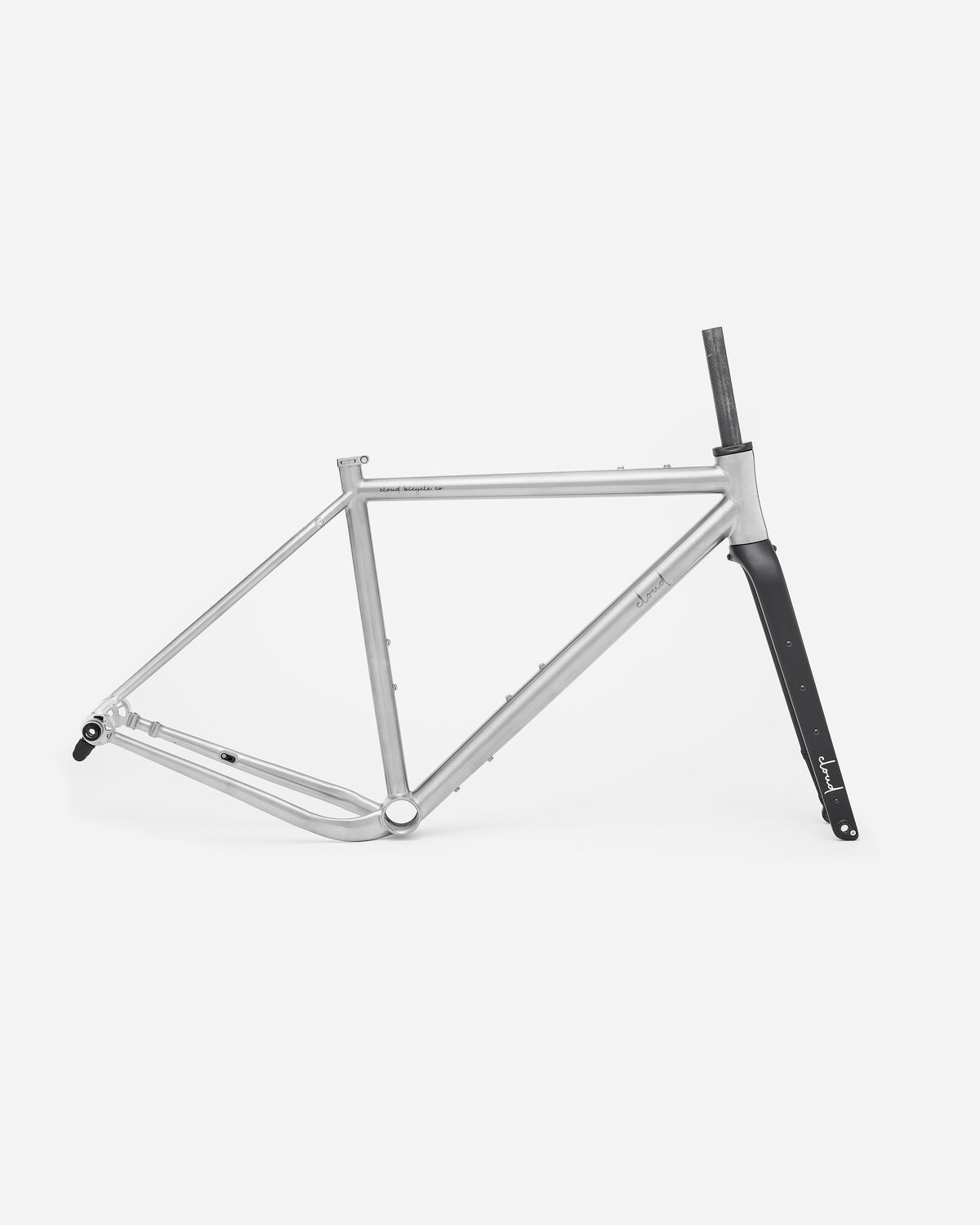

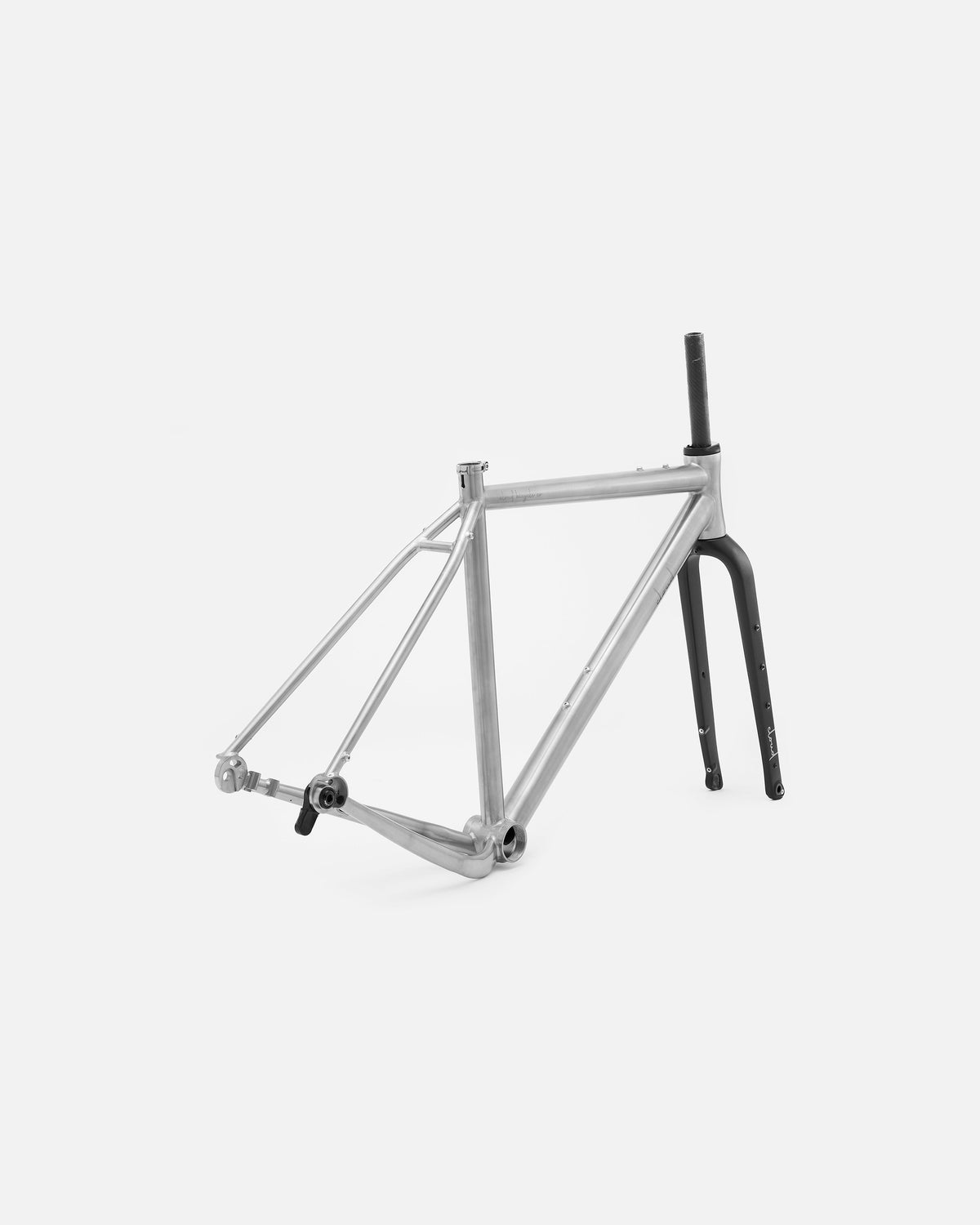

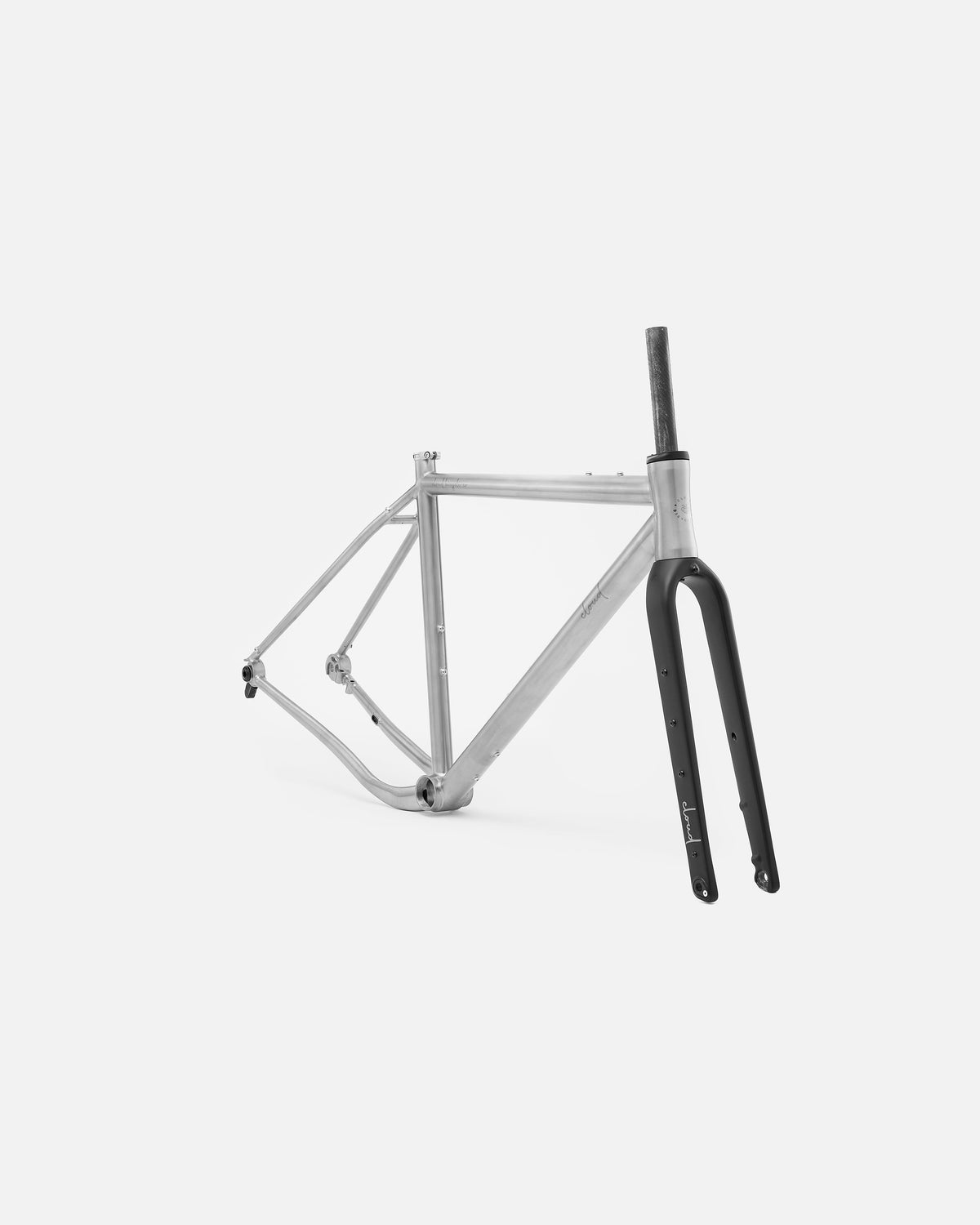

CLOUD Gravel Titanium Frameset and Fork
Frame Weight: 1.79kg
Fork Weight: 465g
Constructed from premium Grade 9 titanium, the CLOUD Gravel Frameset is engineered for speed, stability and long-distance performance. Featuring 60mm front tyre clearance, 55mm rear tyre clearance, 48T chainring clearance and UDH compatibility, it delivers exceptional versatility for modern high-performance gravel riding.
- Regular price
- $3,495.00
- Sale price
- $3,495.00
- Regular price
-
- Frame weight
- 1.79kg
- Fork weight
- 465g
- Material
- Grade 9 titanium
- Tyre clearance
- 60mm front, 55mm rear
- Chainring clearance
- 48T
- Derailleur hanger
- UDH compatible
Adventure/Gravel Geometry
| Adventure/Gravel Geometry | ||||
| S | M | L | XL | |
| Reach | 385 | 390 | 400 | 410 |
| Stack | 545 | 560 | 592 | 620 |
| Seat tube | 460 | 500 | 520 | 550 |
| Top tube Effective | 531 | 551 | 575 | 600 |
| Head tube | 110 | 124 | 156 | 183 |
| ST Angle | 75 | 74 | 73.5 | 73.5 |
| HTAngle | 70.5 | 71 | 71.5 | 72 |
| BB Drop | 73 | 73 | 73 | 73 |
| Chainstay | 435 | 435 | 435 | 435 |
| Wheelbase | 1039 | 1045 | 1061 | 1074 |
| Fork offset | 55 | 55 | 55 | 55 |
| Fork crown - axle | 410 | 410 | 410 | 410 |
| Front - Center | 615 | 620 | 636 | 650 |
| Trail w/ 48mm tyre | 71 | 68 | 64 | 61 |
| Trail w/ 55mm tyre | 73 | 70 | 66 | 63 |
Key features
Couldn't load pickup availability

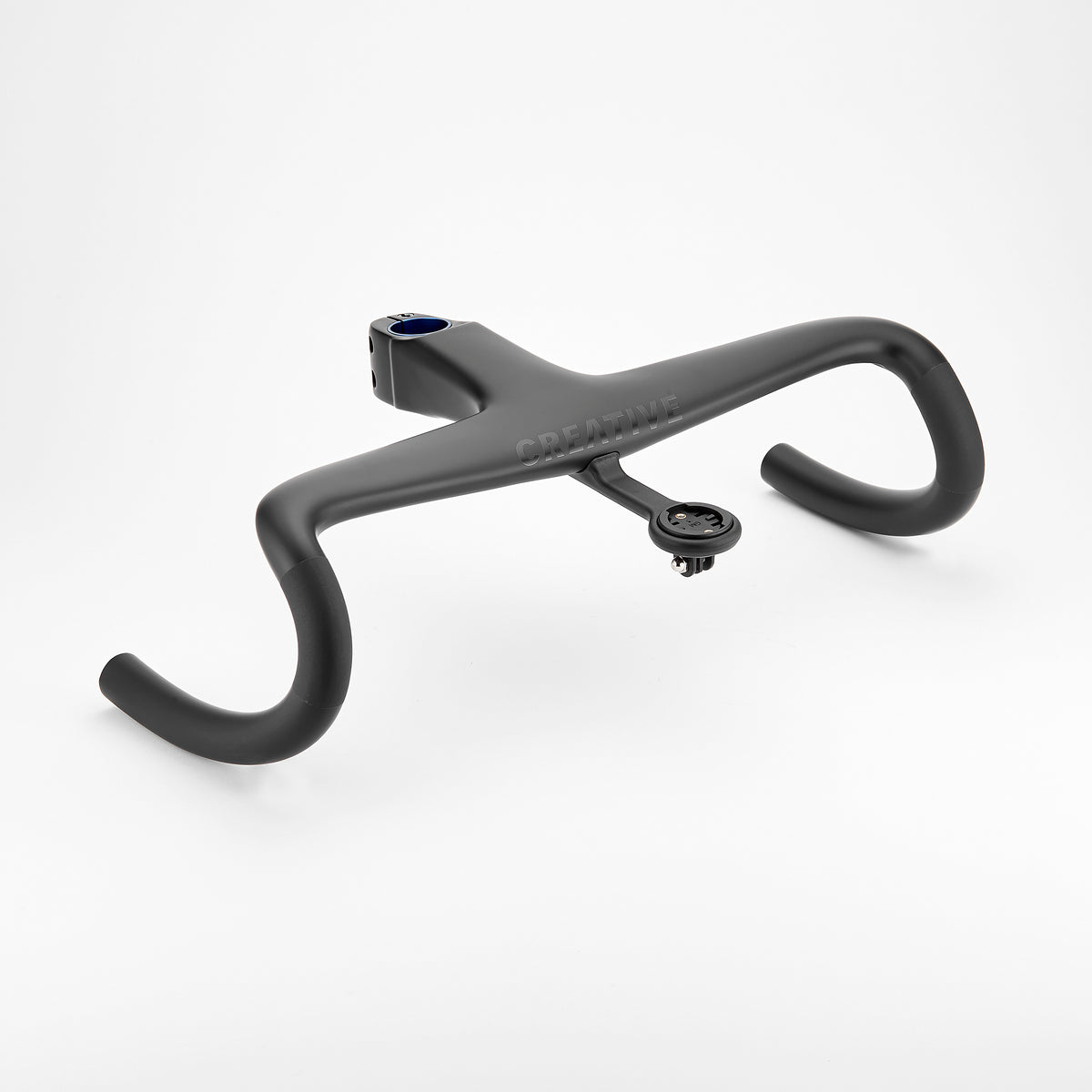

We contact you post-purchase to confirm your bar width and stem length
Available sizes:
80 mm length ·
360 / 380 / 400 / 420 mm width
90 mm length ·
360 / 380 / 400 / 420 mm width
100 mm length ·
360 / 380 / 400 / 420 mm width
110 mm length ·
360 / 380 / 400 mm width
120 mm length ·
360 / 380 / 400 mm width
130 mm length ·
360 / 380 / 400 mm width
140 mm length ·
360 / 380 / 400 mm width
KEY FEATURES
-
60mm Tyre Clearance
Up to 60mm front and 55mm rear tyre clearance on ADVENTURE bikes. Every ADVENTURE bike comes standard with 48mm tyres.
-
Carbon Wheelset
Every bike comes standard with a carbon wheelset from Creative Carbon. All wheelsets are tubeless ready.
-
UDH
Universal Derailleur Hanger - Every ADVENTURE frame is compatible with UDH.
-
TITANIUM FRAME
Extra top tube and down tube mounting points.
-
FORK MOUNTING POINTS
ADVENTURE bikes include extra mounting points on the forks.
-
CERAMIC BOTTOM BRACKET
ADVENTURE bikes come standard with AITA Ceramic bottom bracket.
