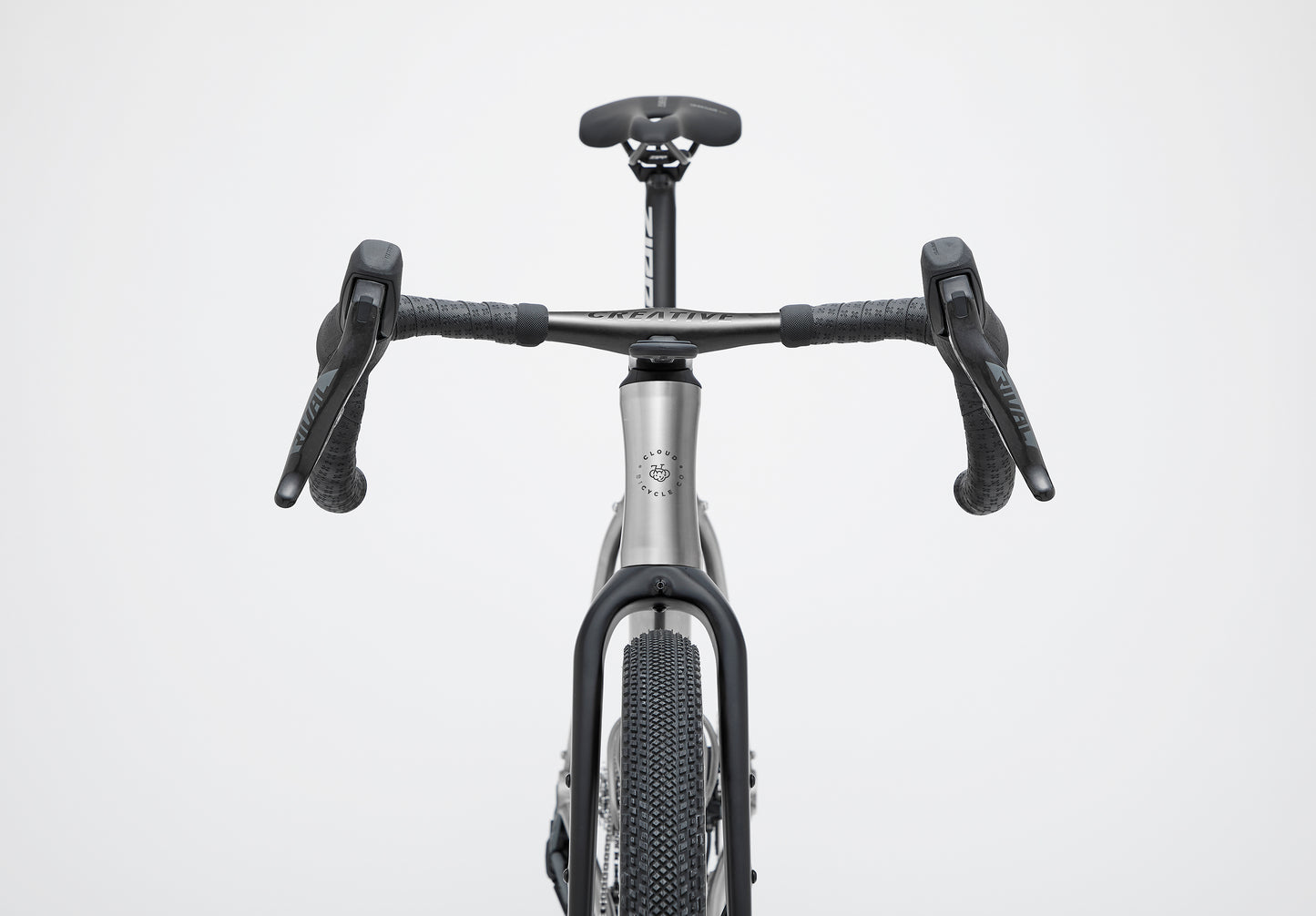

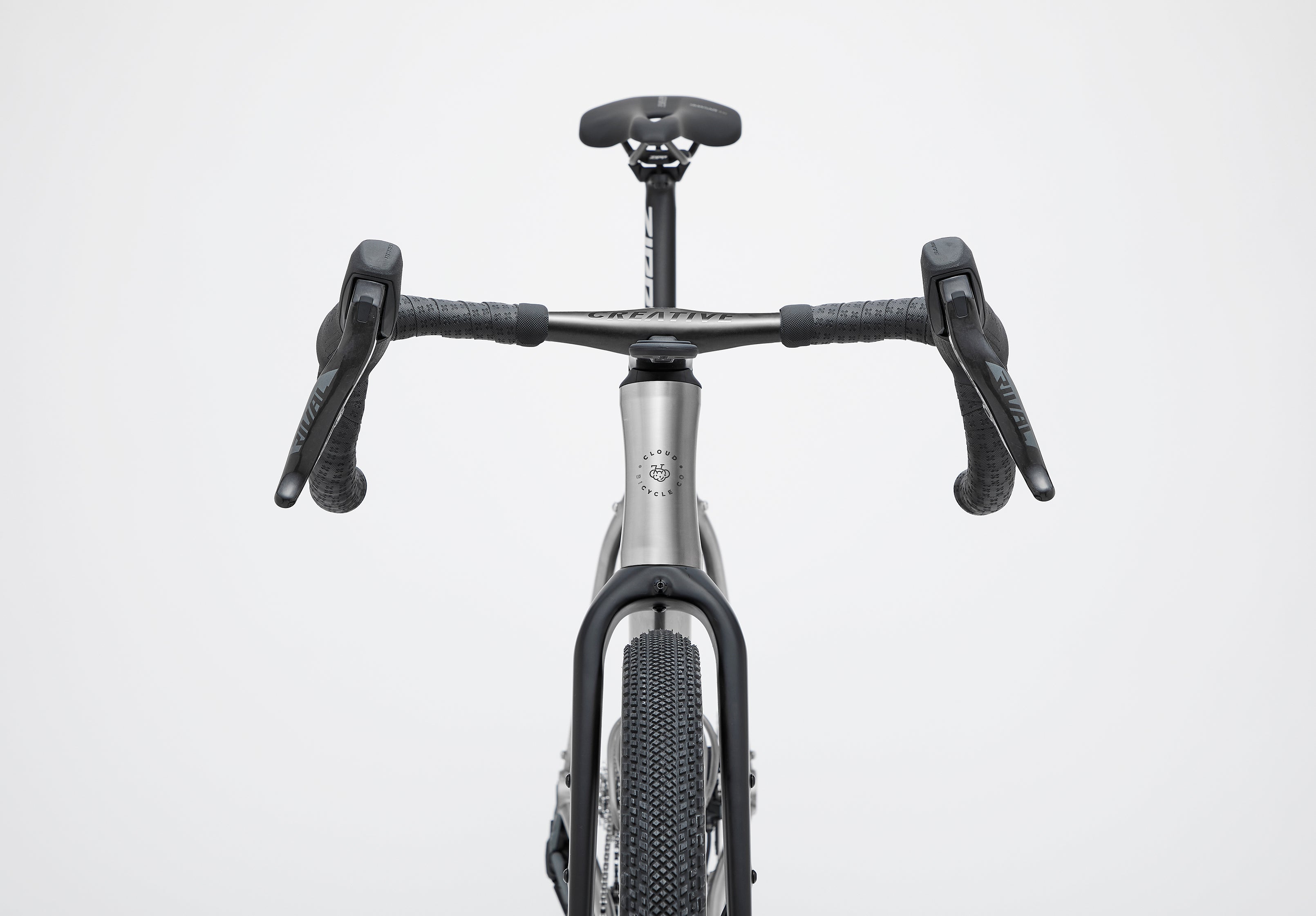

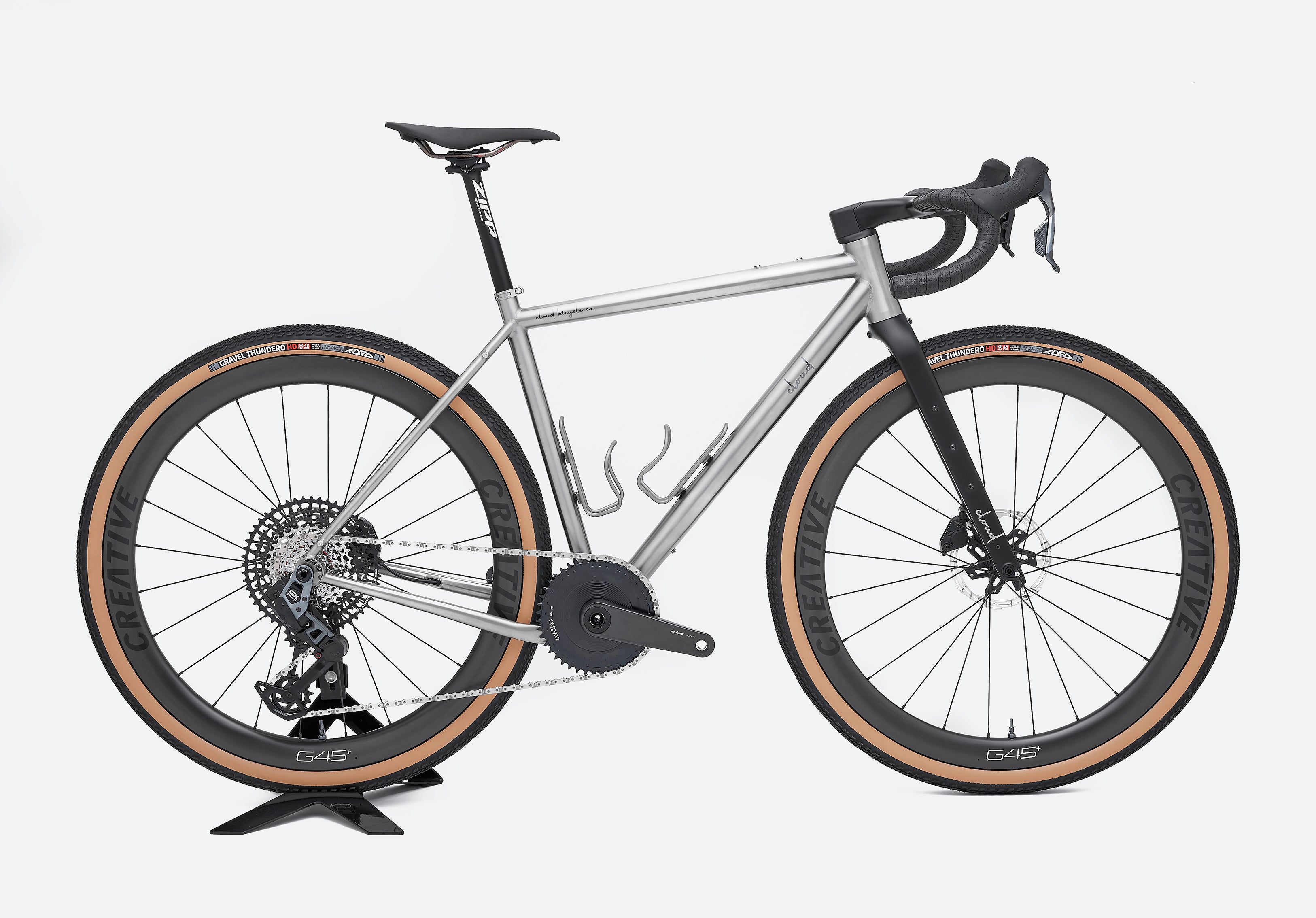

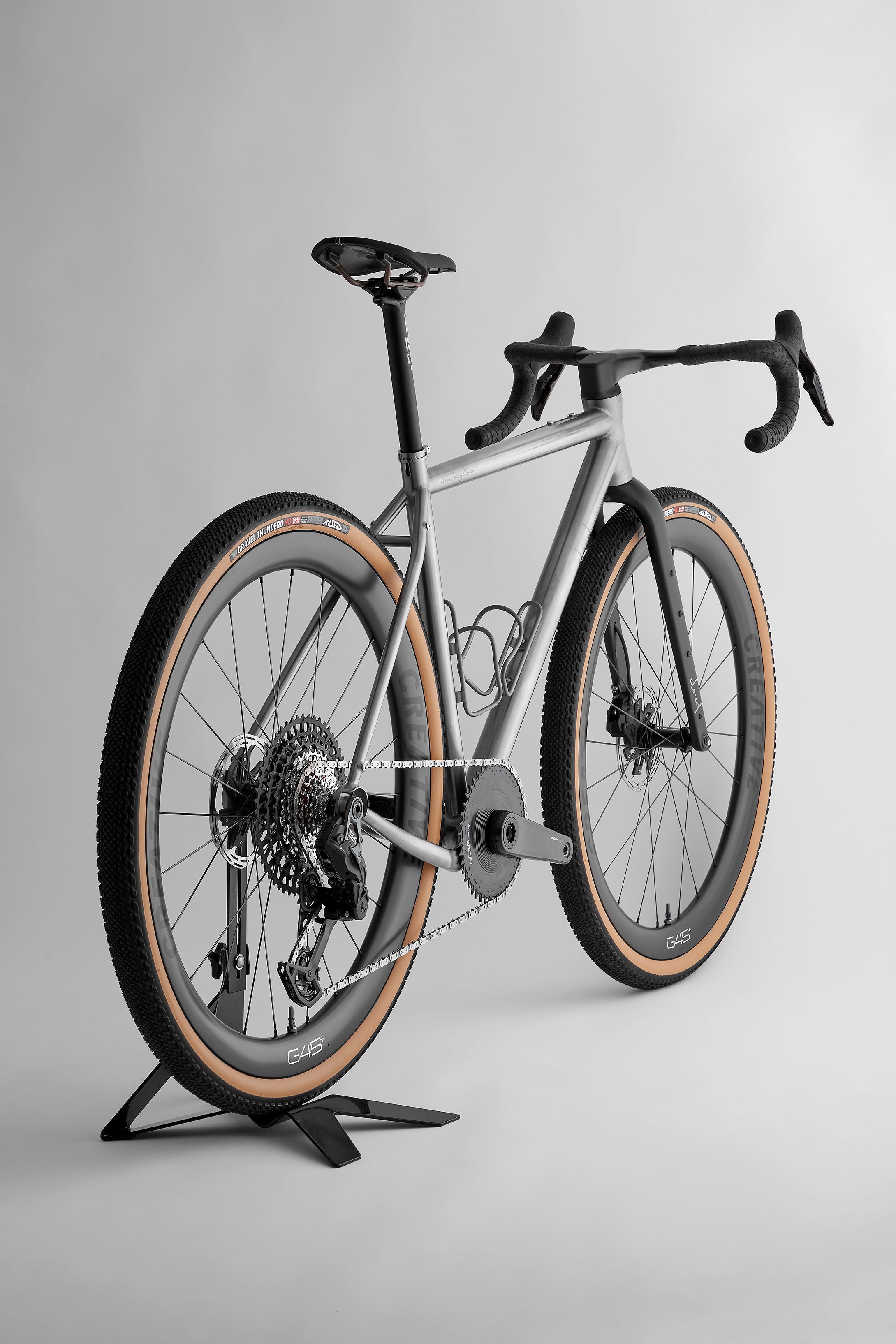

CLOUD Adventure Titanium Bike SRAM GX Eagle Mullet AXS
Weight - 8.7 kg
CLOUD Gravel/Adventure Titanium Frameset

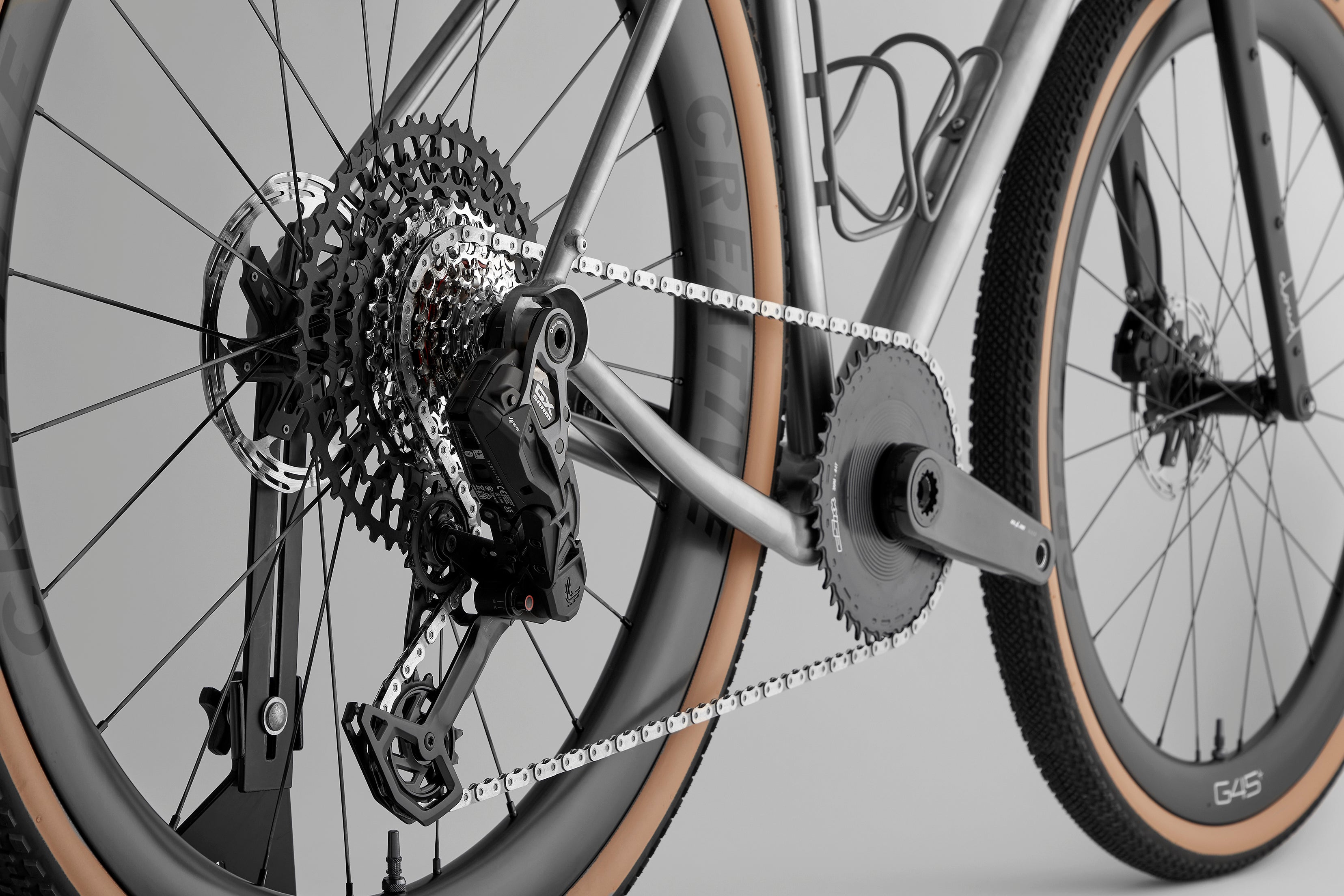

SRAM AXS GX Eagle Transmission & Chain
SRAM E1 Rival AXS E1 Shifters & Calipers
SRAM AXS Eagle Cassette 10-52
ELILEE X310 Crank
cSIXX Direct Mount Chainring 38t
AITA Ceramic T47 BB
CREATIVE CARBON Integrated Aero Barstem
CREATIVE CARBON G45 Disc Wheelset
ZIPP Service Course Seatpost
BURGH Domestique Bar Tape
SELLE REPENTE Quasar 2.0 Saddle
TUFO Gravel Thundero 48mm tyres
CLOUD Titanium Bottle Cages
BUILD TIME: 5-10 BUSINESS DAYS
- Regular price
- $7,495.00
- Sale price
- $7,495.00
- Regular price
-
Adventure/Gravel Geometry
| Adventure/Gravel Geometry | ||||
| S | M | L | XL | |
| Reach | 385 | 390 | 400 | 410 |
| Stack | 545 | 560 | 592 | 620 |
| Seat tube | 460 | 500 | 520 | 550 |
| Top tube Effective | 531 | 551 | 575 | 600 |
| Head tube | 110 | 124 | 156 | 183 |
| ST Angle | 75 | 74 | 73.5 | 73.5 |
| HTAngle | 70.5 | 71 | 71.5 | 72 |
| BB Drop | 73 | 73 | 73 | 73 |
| Chainstay | 435 | 435 | 435 | 435 |
| Wheelbase | 1039 | 1045 | 1061 | 1074 |
| Fork offset | 55 | 55 | 55 | 55 |
| Fork crown - axle | 410 | 410 | 410 | 410 |
| Front - Center | 615 | 620 | 636 | 650 |
| Trail w/ 48mm tyre | 71 | 68 | 64 | 61 |
| Trail w/ 55mm tyre | 73 | 70 | 66 | 63 |
Couldn't load pickup availability
We contact you post-purchase to confirm your bar width and stem length
Available sizes:
80 mm length ·
360 / 380 / 400 / 420 mm width
90 mm length ·
360 / 380 / 400 / 420 mm width
100 mm length ·
360 / 380 / 400 / 420 mm width
110 mm length ·
360 / 380 / 400 mm width
120 mm length ·
360 / 380 / 400 mm width
130 mm length ·
360 / 380 / 400 mm width
140 mm length ·
360 / 380 / 400 mm width
KEY FEATURES
-
60mm Tyre Clearance
Up to 60mm front and 55mm rear tyre clearance on ADVENTURE bikes. Every ADVENTURE bike comes standard with 48mm tyres.
-
Carbon Wheelset
Every bike comes standard with a carbon wheelset from Creative Carbon. All wheelsets are tubeless ready.
-
UDH
Universal Derailleur Hanger - Every ADVENTURE frame is compatible with UDH.
-
TITANIUM FRAME
Extra top tube and down tube mounting points.
-
FORK MOUNTING POINTS
ADVENTURE bikes include extra mounting points on the forks.
-
CERAMIC BOTTOM BRACKET
ADVENTURE bikes come standard with AITA Ceramic bottom bracket.
